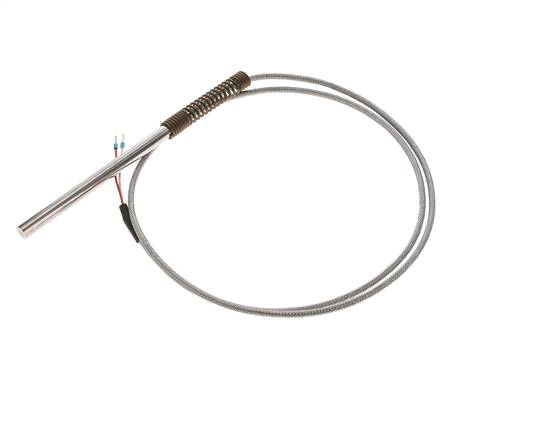

Item description
Materials:
Protective tube: 1.4571
Temperature and measurement range:
-10 to +350 °C
Measuring element:
1 x Pt100 (2-wire)
Electrical connection:
1 metre Glass silk - stainless steel braiding, cable outlet with VA bend protection, pipelines not moisture sealed, only for dry environment
Protective tube: 1.4571
Temperature and measurement range:
-10 to +350 °C
Measuring element:
1 x Pt100 (2-wire)
Electrical connection:
1 metre Glass silk - stainless steel braiding, cable outlet with VA bend protection, pipelines not moisture sealed, only for dry environment
Properties
| Sleeve diameter [mm] | 8 |
| Sleeve length [mm] | 100 |
Further information on PT1008/100
| Weight | 65 g / pcs |
| GTIN | 4050571551230 |
| Customs duty number | 90251180 |
Documents
- Catalogue page Atlas 9 (Page 701c) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
