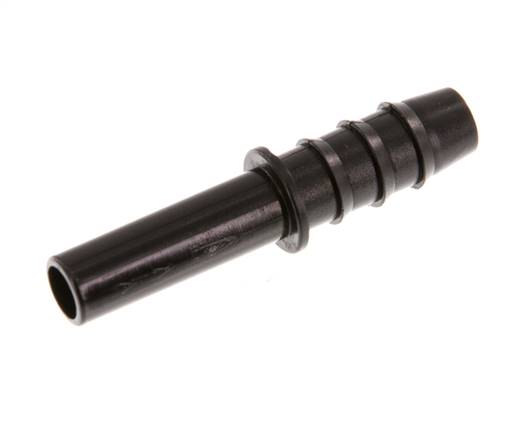

plug / push in nipples 8mm-8 (5/16")mm hose screw connection, IQS standard
Item number:
IQSGT 80H8
Item description
Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66 (M 3: nickel-plated steel / PA66), seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 20 bar
Media:
oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).
Advantages:
•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring
Body: nickel-plated brass / PA 66, sleeve: PA 66 (M 3: nickel-plated steel / PA66), seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 20 bar
Media:
oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).
Advantages:
•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring
Properties
| D [mm] | 8 |
| D1 [mm] | 10,0 |
| for hose diameter (inner) [mm] | 8 (5/16") |
Further information on IQSGT80H8
| Weight | 2,4 g / pcs |
| GTIN | 4050571375775 |
| Customs duty number | 39174000 |
| RoHS compliant | Yes |
| Manufacturer | Sang-A |
Documents
- Catalogue page Atlas 9 (Page 54) (PDF)
- Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
