Item description
Description:

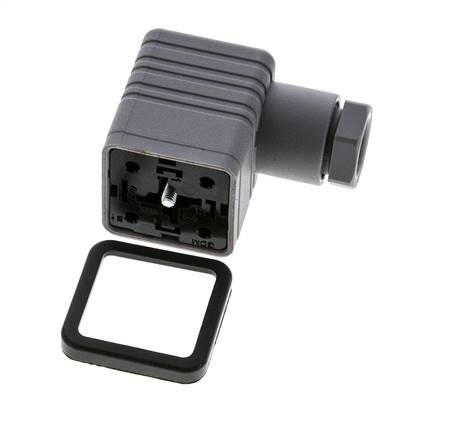

Push in connector according to DIN 43650 / EN 175301-803 / industry standard.
Temperature range:
-40 to +125 °C
Voltage:
max. 250 V AC / 300 V DC, max. 6 A (plug size 3: max. 10 A)
Protection class:
IP 65
Scope of delivery:
Plug including screw and flat seal (plug size 3: Profile seal)
Suitable:
These plugs are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Push in connector according to DIN 43650 / EN 175301-803 / industry standard.
Temperature range:
-40 to +125 °C
Voltage:
max. 250 V AC / 300 V DC, max. 6 A (plug size 3: max. 10 A)
Protection class:
IP 65
Scope of delivery:
Plug including screw and flat seal (plug size 3: Profile seal)
Suitable:
These plugs are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Properties
| Version | Standard |
| Plug size | 3 |
| Standard | DIN/EN-A |
| colour | Grey |
| Number of contacts | 2 & PE |
| Height [mm] | 35 |
| Cable connection | M 16x1,5 |
Further information on ST03HG
| Weight | 27 g / pcs |
| GTIN | 4050571645281 |
| Customs duty number | 85369010 |
Documents
- Catalogue page Atlas 9 (Page 894) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
