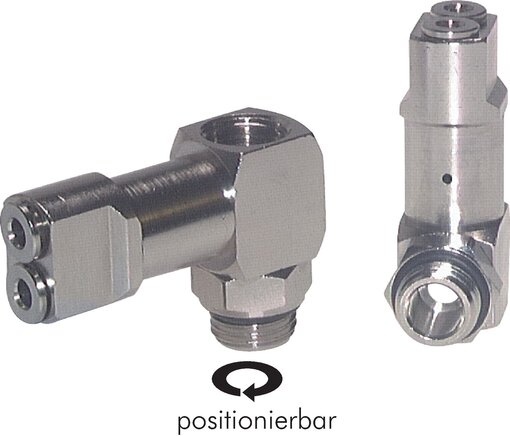

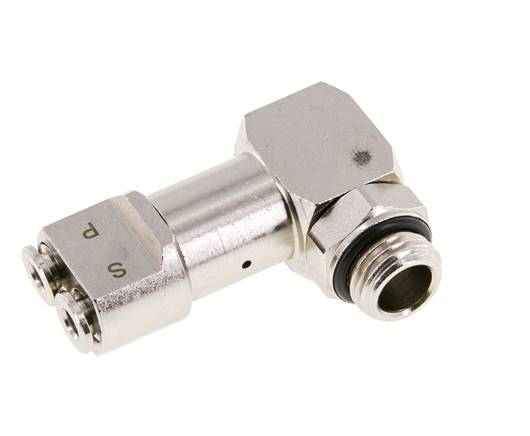

pneumatic sensor fitting G 1/4", Plug-in connection (pneumatic signal output)
Item number:
PPM 14
Item description
Materials:
Body: Brass, nickel-plated brass, plastic, seals: NBR
Switching time:
3 ms
Electrical connection values (Type PPE):
max. 2 A, 0 - 48 V DC, 250 V AC
Power consumption (PPE type):
Direct current: 5 W, alternating current: 10 VA
Protection class (PPE type):
IP 40
Function:

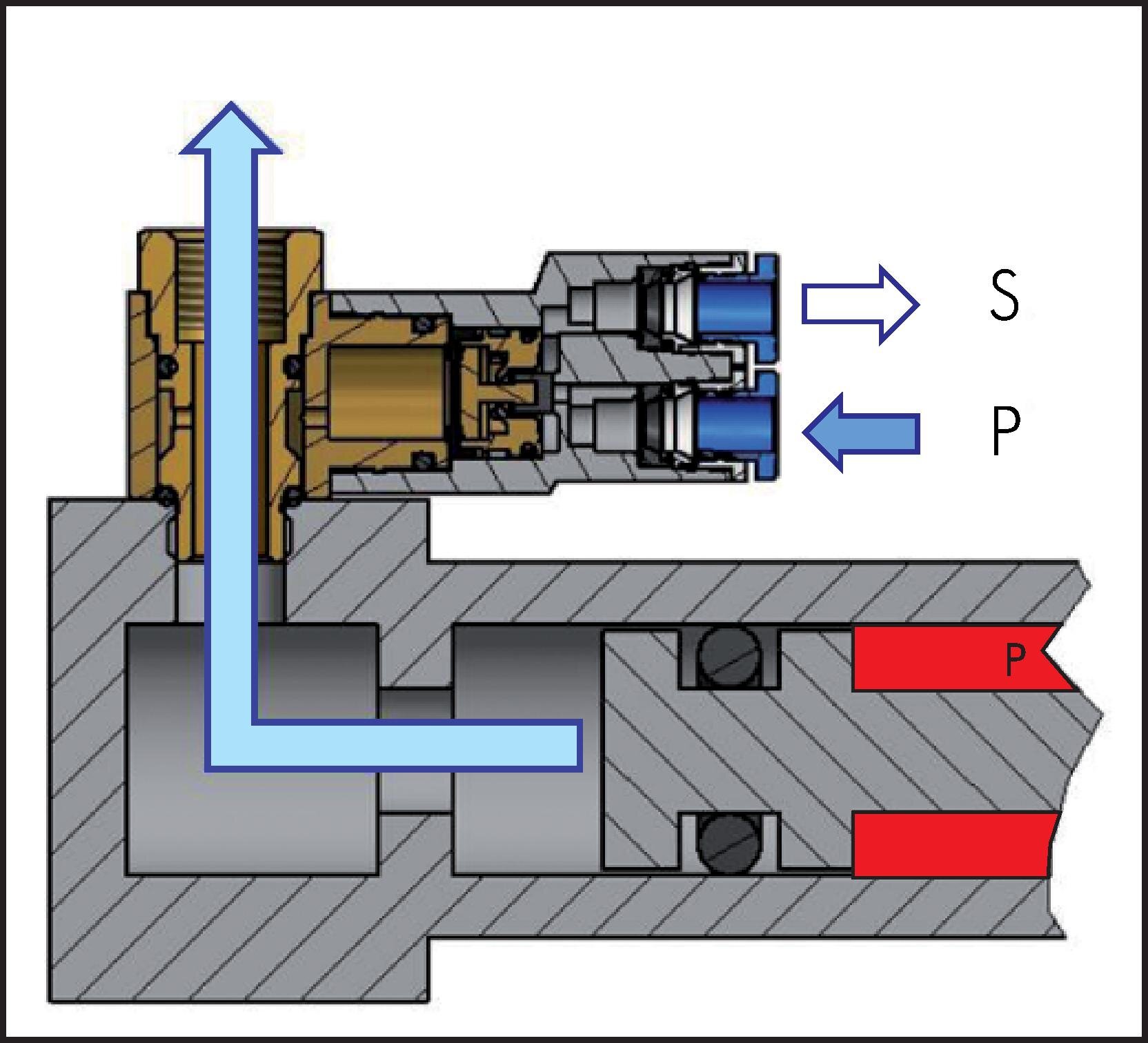

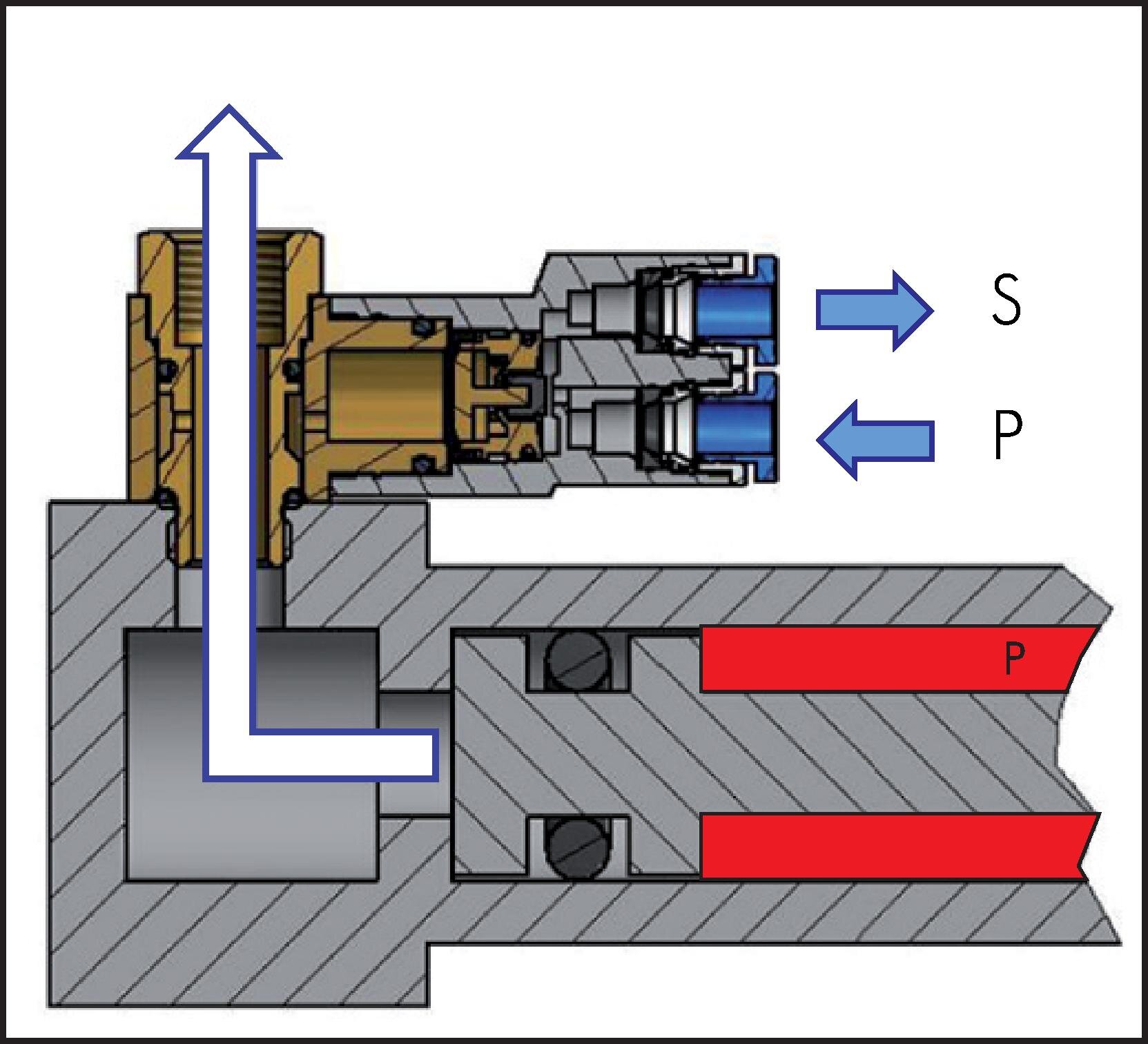

A pneumatic sensor fitting takes over the function of the limit switch (pneumatic or electric signal). The screw connection is screwed into the input hole of a cylinder and scans the working pressure of the cylinder. If the screw connection shows no pressure, the screw connection switches over from (P) 1 to (S) 5.
Warning:
Signal screw connections detect reaching the end position only through a pressure drop. However, this pressure drop can also occur if the cylinder is blocked in its movement path. If there is danger of such a blockage, we recommend using pneumatic cylinder switches, which react directly to the magnetic field of a magnetic piston.
Advantages:
•pure pneumatic control, no electrical energy required,
•simple installation,
•compact design
Body: Brass, nickel-plated brass, plastic, seals: NBR
Switching time:
3 ms
Electrical connection values (Type PPE):
max. 2 A, 0 - 48 V DC, 250 V AC
Power consumption (PPE type):
Direct current: 5 W, alternating current: 10 VA
Protection class (PPE type):
IP 40
Function:
A pneumatic sensor fitting takes over the function of the limit switch (pneumatic or electric signal). The screw connection is screwed into the input hole of a cylinder and scans the working pressure of the cylinder. If the screw connection shows no pressure, the screw connection switches over from (P) 1 to (S) 5.
Warning:
Signal screw connections detect reaching the end position only through a pressure drop. However, this pressure drop can also occur if the cylinder is blocked in its movement path. If there is danger of such a blockage, we recommend using pneumatic cylinder switches, which react directly to the magnetic field of a magnetic piston.
Advantages:
•pure pneumatic control, no electrical energy required,
•simple installation,
•compact design
Properties
| Signal connection version | Plug-in connection (pneumatic signal output) |
| External thread | G 1/4" |
| Female thread | G 1/4" |
| Signal connection (hose Ø outside) [mm] | 4 |
| Temperature range [°C] | -20 to +80 |
| Operating pressure [bar] | 3 - 10 |
| reaction pressure [bar] | 0,3 |
Further information on PPM14
| Weight | 80 g / pcs |
| GTIN | 4050571550004 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 789) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
