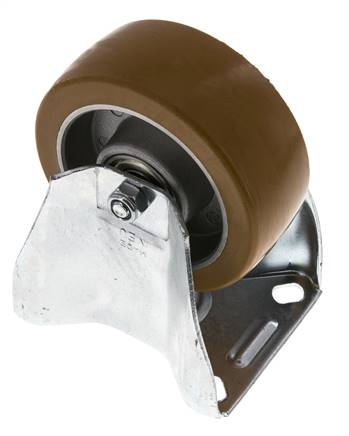

Polyurethane heavy duty roller, Fixed castor, 100mm
Item number:
RO 100 PU B
Item description
Properties:
Low noise run, robust and abrasion resistant as well as cut resistant to metal chipping, resistant to many aggressive media. Extra strong steel sheet housing, from Ø 200 mm welded housing, double ball bearing in yoke.
Colour:
orange / amber (diameter 100 mm: yellow / beige)
Bearing type:
Ball bearing (2-way)
Low noise run, robust and abrasion resistant as well as cut resistant to metal chipping, resistant to many aggressive media. Extra strong steel sheet housing, from Ø 200 mm welded housing, double ball bearing in yoke.
Colour:
orange / amber (diameter 100 mm: yellow / beige)
Bearing type:
Ball bearing (2-way)
Properties
| Version | Fixed castor |
| Rims | Aluminium rim |
| Wheel diameter (±3%) [mm] | 100 |
| Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)] | 280 |
| Wheel width [mm] | 40 |
| Height (± 2) [mm] | 128 |
| Plate sizes [mm] | 100 x 85 |
| Borehole removal [mm] | 80 x 60 |
| Borehole diameter [mm] | 9 |
| Loading (± 2) [mm] | 0 |
Further information on RO100PUB
| Weight | 800 g / pcs |
| GTIN | 4050571596422 |
| Customs duty number | 39269097 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 1119) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
