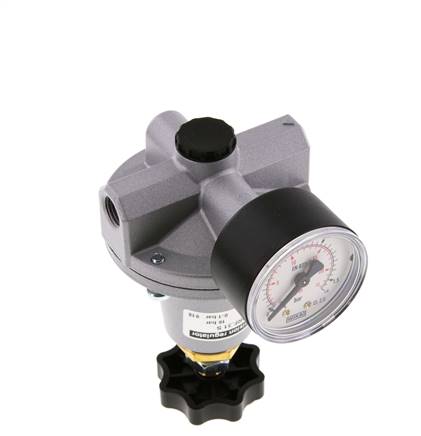

Precision pressure regulator G 1/4", 0,5 to 10 bar, Standard 3.
Item number:
DRF 31-10
Item description
Application:
Precision pressure regulators are used where a very high constancy of the secondary pressure is required with small flow quantities. The good regulation and flow characteristic curve is achieved thanks to the fact that ratio of the membrane to the valve seat surface is very high. The regulator is independent of inlet pressure variations to the best possible extent, does not have any own air consumption and can be used with "normal" filtered compressed air.
Version:
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410, diaphragms and seals: FKM
Temperature range:
-10 to +60 °C
Input pressure:
max. 16 bar
Pressure gauge connection:
G 1/4"
Switch panel thread:
M 20x1,5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Flow:
550 l/min, secondary vent: 100 l/min
Own air consumption:
none (precision pressure regulator with feedback connection: low own air consumption)
Control accuracy:
± 7.5 mbar
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Precise pressure regulation regardless of the pre-pressure,
•No own air consumption,
•Robust design, no microfilter necessary for compressed air
Precision pressure regulators are used where a very high constancy of the secondary pressure is required with small flow quantities. The good regulation and flow characteristic curve is achieved thanks to the fact that ratio of the membrane to the valve seat surface is very high. The regulator is independent of inlet pressure variations to the best possible extent, does not have any own air consumption and can be used with "normal" filtered compressed air.
Version:
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410, diaphragms and seals: FKM
Temperature range:
-10 to +60 °C
Input pressure:
max. 16 bar
Pressure gauge connection:
G 1/4"
Switch panel thread:
M 20x1,5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Flow:
550 l/min, secondary vent: 100 l/min
Own air consumption:
none (precision pressure regulator with feedback connection: low own air consumption)
Control accuracy:
± 7.5 mbar
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Precise pressure regulation regardless of the pre-pressure,
•No own air consumption,
•Robust design, no microfilter necessary for compressed air
Properties
| Version | Precision pressure regulator |
| Thread | G 1/4" |
| Pressure regulation range [bar] | 0,5 - 10 |
| Pressure gauge display [bar] | 0 - 16 |
| Mounting brackets | BW 30 |
Further information on DRF31-10
| Weight | 900 g / pcs |
| GTIN | 4050571268978 |
| Customs duty number | 84811099 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 603) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Special regulator for controlling volume boosters (feedback line from the secondary side of the volume booster is used for the regulation), low own air consumption
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
