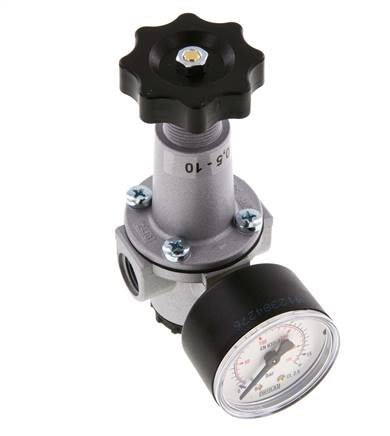

Pressure regulator G 3/8", 0,5 to 10 bar, model series Standard 1
Item number:
DR 12
Item description
Version:
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 5 and 7: aluminium), diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection:
G 1/4"
Switch panel thread:
Series 1 to 3: M 20x1.5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Other pressure regulation ranges: 0.1-3 bar -3, 0.2-6 bar -6, 0.5-16 bar -16
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 5 and 7: aluminium), diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection:
G 1/4"
Switch panel thread:
Series 1 to 3: M 20x1.5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Other pressure regulation ranges: 0.1-3 bar -3, 0.2-6 bar -6, 0.5-16 bar -16
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Properties
| Model series | Standard 1 |
| Thread | G 3/8" |
| Pressure regulation range [bar] | 0,5 - 10 |
| flow [l/min] | 1000 |
| input pressure [bar] | max. 16 |
| Pressure gauge display [bar] | 0 - 16 |
| H [mm] | 132 |
| H1 [mm] | 32 |
| L [mm] | 54 |
| Mounting brackets | BW 10 |
Further information on DR12
| Weight | 500 g / pcs |
| GTIN | 4050571265151 |
| Customs duty number | 84811099 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 602) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
