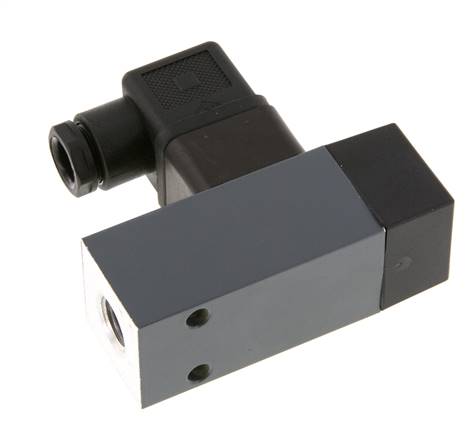

Item description
Materials:
Body: aluminium, diaphragms**: NBR (vacuum switch: ECO)
Temperature range:
-20 to +100 °C
Switch-back difference (hysteresis)
10 to 30 % of the value that has been set
Protection class:
IP 65
Electrical connection:
Design B1: Screw terminals, design B2: Angle plug DIN 43650 / EN 175301-803 A (size 3, 4-pole)
Switch type:
Changer
Media:
Hydraulic oil, machine oil, fuel oil, air
Body: aluminium, diaphragms**: NBR (vacuum switch: ECO)
Temperature range:
-20 to +100 °C
Switch-back difference (hysteresis)
10 to 30 % of the value that has been set
Protection class:
IP 65
Electrical connection:
Design B1: Screw terminals, design B2: Angle plug DIN 43650 / EN 175301-803 A (size 3, 4-pole)
Switch type:
Changer
Media:
Hydraulic oil, machine oil, fuel oil, air
Properties
| Switch type | Pressure switches |
| Setting range [bar] | 0,5 - 5 |
| Female thread | G 1/4" |
| Design** | B2 |
| Safe at overpressure up to [bar] | 200 |
| Switch capacity* | 250 V / 2 A |
| Electrical connection | Right-angle connector, size 3, 4-pin (DIN 43650 / EN 175301-803 A) (flat pin) |
Further information on DRSV5
| Weight | 260 g / pcs |
| GTIN | 4050571273392 |
| Customs duty number | 90268080 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 686) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*at 30 V DC, **settings range >= 100 bar controller using pistons, ***design B1: lateral adjustment screw, design B2: The setting can only be completed after removing the safety cap
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
