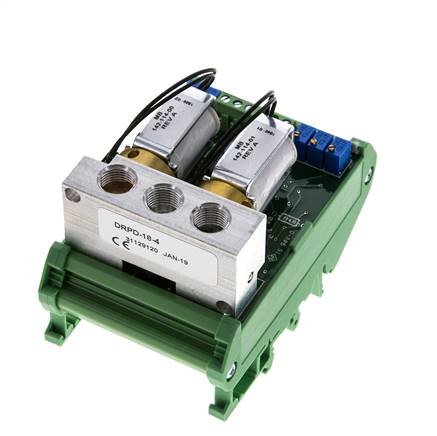

Proportional pressure regulator G 1/8", 0 to 10 bar, 4 - 20 mA, for DIN-rails
Item number:
DRPD 18-10-E20
Item description
Version:
The proportional pressure regulator regulates the pressure on the secondary side in proportion to an electric input signal (0 - 10 V or 4 - 20 mA).
Tip:
For larger flow rates, elevated temperatures, aggressive environments and the like, the proportional pressure regulator can also be used as a pilot regulator for a remote pressure regulator (booster) type DRi (for standard applications) or FDRi 03 (for precision control and large venting capacities).
Media:
fine-filtered compressed air (3 µm) & neutral gases, unoiled
Temperature range:
-10 to +60 °C
Power supply:
15 to 24 V (DC)
Power input:
max. 325 mA (DIN rail mounting: max. 250 mA)
Protection class:
IP 65 (DIN rail mounting: IP 00)
Electrical connection:
M 12 plug (A-coded, 4-pole) (DIN rail mounting: screw terminals)
Linearity:
± 0,2 % from end value
Repeatability:
± 0.2 % from end value
Hysteresis:
1 % of the end value
Accuracy:
± 0,5 % of the end value
Output signal (monitor):
0 – 10 V
The proportional pressure regulator regulates the pressure on the secondary side in proportion to an electric input signal (0 - 10 V or 4 - 20 mA).
Tip:
For larger flow rates, elevated temperatures, aggressive environments and the like, the proportional pressure regulator can also be used as a pilot regulator for a remote pressure regulator (booster) type DRi (for standard applications) or FDRi 03 (for precision control and large venting capacities).
Media:
fine-filtered compressed air (3 µm) & neutral gases, unoiled
Temperature range:
-10 to +60 °C
Power supply:
15 to 24 V (DC)
Power input:
max. 325 mA (DIN rail mounting: max. 250 mA)
Protection class:
IP 65 (DIN rail mounting: IP 00)
Electrical connection:
M 12 plug (A-coded, 4-pole) (DIN rail mounting: screw terminals)
Linearity:
± 0,2 % from end value
Repeatability:
± 0.2 % from end value
Hysteresis:
1 % of the end value
Accuracy:
± 0,5 % of the end value
Output signal (monitor):
0 – 10 V
Properties
| Input signal | 4 - 20 mA |
| Design | for DIN-rails |
| Thread | G 1/8" |
| Pressure regulation range [bar] | 0 - 10 |
| flow [l/min] | 35 |
| Venting [l/min] | 35 |
| Inlet pressure (minimum set pressure) [bar] | 0 - 13,8 |
Further information on DRPD18-10-E20
| Weight | 260 g / pcs |
| GTIN | 4050571271732 |
| Customs duty number | 90328100 |
