Proportional pressure regulator G 3/8" 0,05 to 9bar 0 – 10 V Output:Switching output (PNP)
Item number:
ETV 3000-9-AK
Item description
Version:
The proportional pressure regulator regulates the pressure on the secondary side in proportion to an electric input signal (0 - 10 V or 4 - 20 mA).
Tip:
For larger flow rates, elevated temperatures, aggressive environments and the like, the proportional pressure regulator can also be used as a pilot regulator for a remote pressure regulator (booster) type DRi (for standard applications) or FDRi 03 (for precision control and large venting capacities).
Media:
fine-filtered compressed air (5 µm) & neutral gases, oil-free
Temperature range:
0 to +50 °C
Input pressure:
1 to 10 bar (at least 1 bar higher than the set pressure)
Vent port:
M 5 & G 1/8"
Power supply:
21,6 to 26,4 V (DC)
Power input:
max. 125 mA
Protection class:
IP 65
Electrical connection:
M12 connector, A-coded, 4-pole (DIN EN 61076-2-101) (Plug)
Linearity:
± 1 % of final value
Repeatability:
± 0,5 % of the end value
Hysteresis:
0,5 % from end value
Accuracy:
± 0,5 % of the end value
Scope of delivery:

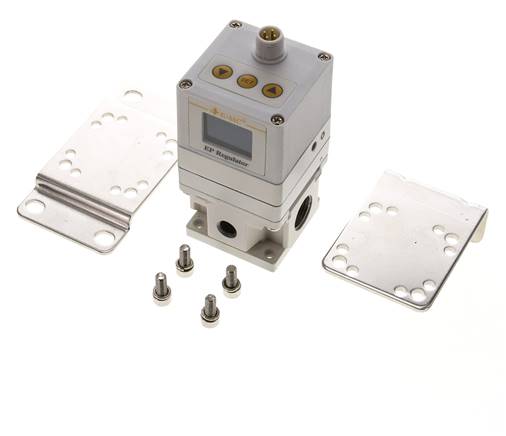

Proportional pressure regulator including L mounting bracket & foot mounting plate
Advantages:
•Compact design,
•Three-coloured display shows set pressure and actual pressure in real time,
•Uncomplicated parameter settings directly at the device,
•Pressure display optionally in bar, MPa, kPa or psi (adjustable),
•Output signal optionally 1-5 V, 4-20 mA or switching contact PNP (max. 80 mA),
•Fixing material included in delivery,
•Main installation dimensions and operation similar to SMC series ITV
The proportional pressure regulator regulates the pressure on the secondary side in proportion to an electric input signal (0 - 10 V or 4 - 20 mA).
Tip:
For larger flow rates, elevated temperatures, aggressive environments and the like, the proportional pressure regulator can also be used as a pilot regulator for a remote pressure regulator (booster) type DRi (for standard applications) or FDRi 03 (for precision control and large venting capacities).
Media:
fine-filtered compressed air (5 µm) & neutral gases, oil-free
Temperature range:
0 to +50 °C
Input pressure:
1 to 10 bar (at least 1 bar higher than the set pressure)
Vent port:
M 5 & G 1/8"
Power supply:
21,6 to 26,4 V (DC)
Power input:
max. 125 mA
Protection class:
IP 65
Electrical connection:
M12 connector, A-coded, 4-pole (DIN EN 61076-2-101) (Plug)
Linearity:
± 1 % of final value
Repeatability:
± 0,5 % of the end value
Hysteresis:
0,5 % from end value
Accuracy:
± 0,5 % of the end value
Scope of delivery:
Proportional pressure regulator including L mounting bracket & foot mounting plate
Advantages:
•Compact design,
•Three-coloured display shows set pressure and actual pressure in real time,
•Uncomplicated parameter settings directly at the device,
•Pressure display optionally in bar, MPa, kPa or psi (adjustable),
•Output signal optionally 1-5 V, 4-20 mA or switching contact PNP (max. 80 mA),
•Fixing material included in delivery,
•Main installation dimensions and operation similar to SMC series ITV
Properties
| Input signal | 0 - 10 V |
| Output signal (monitor) | Switching output (PNP) |
| Model series | Model series 2 |
| Thread | G 3/8" |
| Pressure regulation range [bar] | 0,05 - 9 |
| Flow* [l/min] | 1150 |
| Venting [l/min] | 1.150 |
| Pressure gauge connection | G 1/8" |
Further information on ETV3000-9-AK
| Weight | 600 g / pcs |
| GTIN | 4050571937607 |
| Customs duty number | 90322000 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
*measured at P1 = 7 bar, P2 = 6 bar and 1 bar pressure drop
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
