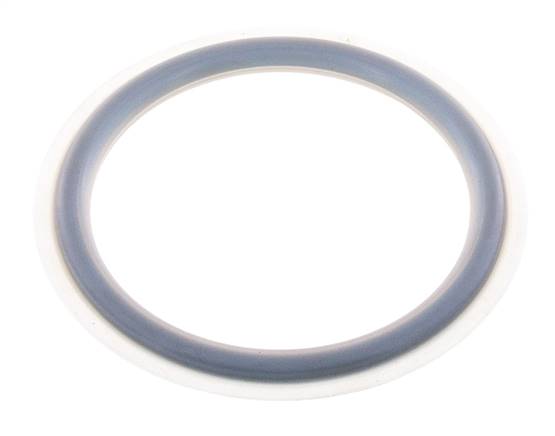

PTFE/FKM replacement seal f. Kamlock coupling DN75 (3")
Item number:
KLOR 30 VPO
Item description
Materials:
O-ring: FKM, covering: PTFE (completely closed, FDA 21 CFR 177.1550)
Temperature range:
-20 to +200 °C
Advantages:
•No touching materials with elastomer cores as a result of the seamless coating,
•easy installation of the seal due to the flexible PTFE centring ring,
•universal chemical resistance (as opposed to welded FEP-covered seals),
•low friction coefficient (6 x lower than FEP / PFA)
O-ring: FKM, covering: PTFE (completely closed, FDA 21 CFR 177.1550)
Temperature range:
-20 to +200 °C
Advantages:
•No touching materials with elastomer cores as a result of the seamless coating,
•easy installation of the seal due to the flexible PTFE centring ring,
•universal chemical resistance (as opposed to welded FEP-covered seals),
•low friction coefficient (6 x lower than FEP / PFA)
Properties
| Outer diameter (approx.) [mm] | 95 |
| DN [mm] | 75 (3") |
Further information on KLOR30VPO
| Weight | 18 g / pcs |
| GTIN | 4050571434274 |
| Customs duty number | 40169300 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 356) (PDF)
- Documentation (PDF)
- Documentation: FDA statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
