Pump threaded connection set G 2"/Rp 1-1/4", Brass

Name: Pump threaded connection set G 2"/Rp 1-1/4", Brass
Brand: Landefeld
SKU: PVS 20114 MS
Price: 56.3 EUR
Availability: InStock

Item number:

PVS 20114 MS

All items of this group

360-degree view: PVS 20114 MS - Pump threaded connection set G 2"/Rp 1-1/4", Medenina

€56.30 incl. VAT

Quantity

pcs

Immediately available from the warehouse; order by 16:30 and we will send it today.

Item description

Materials:
Type brass: Seal Centellen*, Malleable cast iron type: Seal NBR

Scope of delivery:

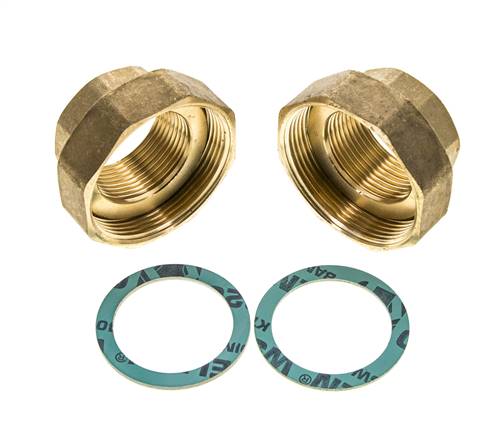

2 screw fittings, consisting of each: 1 x union nut, 1 x pipe connection, 1 x seal

Properties

Material	Brass
Thread, union nut (female thread)	G 2"
Thread pipe connection (female thread)	Rp 1-1/4"
Operating pressure [bar]	16
Replacement seals	PVS 20 DI CE
Temperature range [°C]	-200 to +200

Further information on PVS20114MS

Weight	500 g / pcs
GTIN	4050571892128
Customs duty number	74122000
RoHS compliant	Yes

Documents

Catalogue page Atlas 9 (Page 208) (PDF)
3D CAD file (volume model) (Only for customers that are logged in) (STP)
Data sheet (Print view)

*Media: Water, steam, alcohol, glycol, flammable gases, oils with a hydrocarbon base

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
