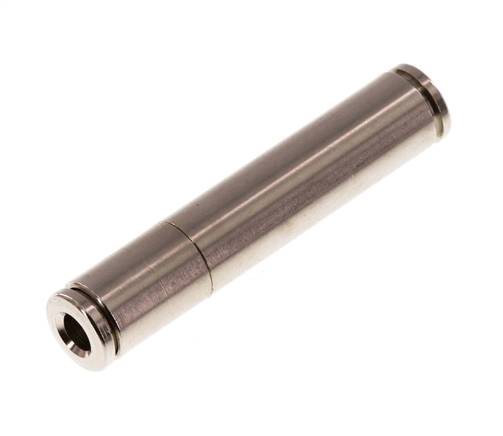

Item description
Materials:
Body and sleeve: Nickel-plated brass, seals: NBR, holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20 to +80 °C
Operating pressure:
0,2 to 10 bar
Media:
oiled and unoiled compressed air, neutral and non-hazardous gasses
Body and sleeve: Nickel-plated brass, seals: NBR, holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20 to +80 °C
Operating pressure:
0,2 to 10 bar
Media:
oiled and unoiled compressed air, neutral and non-hazardous gasses
Properties
| D [mm] | 4 |
Further information on HIQS40MSV
| Weight | 16 g / pcs |
| GTIN | 4050571860264 |
| Customs duty number | 84818099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 81) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
