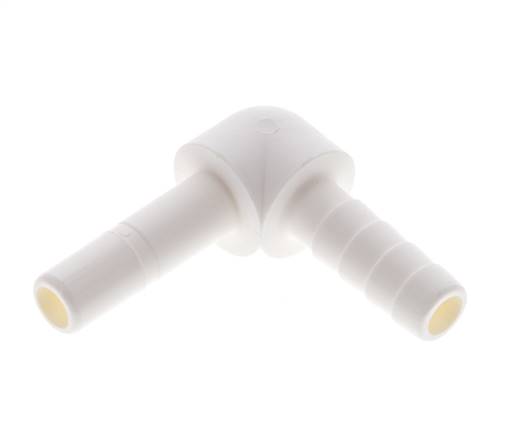

Push in nipple 1/4" (6,35 mm)-6 (1/4")mm hose screw connection, IQS-LE
Item number:
IQSGTW 1/4H-1/4 LE
Item description
Materials:
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 to +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 to +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
Properties
| Version | Angle 90° |
| D [mm] | 1/4" (6,35 mm) |
| D1 [mm] | 6,8 |
| for hose diameter (inner) [mm] | 6 (1/4") |
| Operating pressure [bar] | -0,95 to 16 |
Further information on IQSGTW1/4H-1/4LE
| Weight | 2,7 g / pcs |
| GTIN | 4050571920869 |
| Customs duty number | 39174000 |
| RoHS compliant | Yes |
| Manufacturer | Sang-A |
Documents
- Catalogue page Atlas 9 (Page 87) (PDF)
- Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses (PDF)
- Documentation: Appraisal FDA-NSF (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
