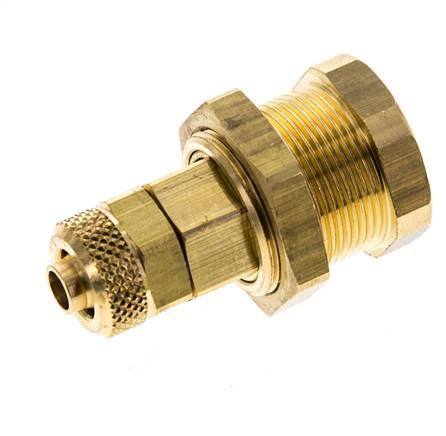

Quick release coupling socket (NW5) 8x6mm hose, Brass
Item number:
KDAK 6 NW5
Item description
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)
Application:
For example, fire service, ambulances and buses, which are supplied externally by a compressed air system for emergencies. Connecting the coupling: Inserting the plug. Loosening the coupling: Pull on the plug and hose, the coupling loosens automatically.
Installation:
To guarantee the pull-off function the coupling must be mounted with the bulkhead thread and supplied using an elastic hose.
Optional:
Can be used for plug shut-off on both sides -BA
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)
Application:
For example, fire service, ambulances and buses, which are supplied externally by a compressed air system for emergencies. Connecting the coupling: Inserting the plug. Loosening the coupling: Pull on the plug and hose, the coupling loosens automatically.
Installation:
To guarantee the pull-off function the coupling must be mounted with the bulkhead thread and supplied using an elastic hose.
Optional:
Can be used for plug shut-off on both sides -BA
Properties
| Material | Brass |
| Hose diameter (outer x inner) [mm] | 8x6 |
| Can be used for plug shut-off on both sides | no |
| Version | Standard |
| Pull-off force 0 / 6 bar [N] | 30 / 35 |
| A | M 20x1 |
| Emax [mm] | 5 |
| Temperature range [°C] | -20 to +100 |
Further information on KDAK6NW5
| Weight | 65 g / pcs |
| GTIN | 4050571393540 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Parker |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 281) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
