Item description
Version:

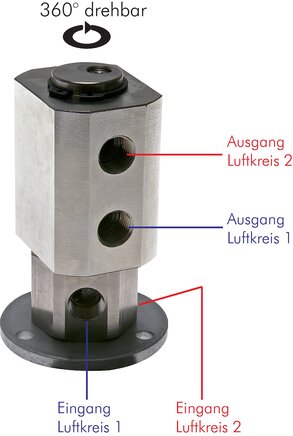

2 separated inlets and 2 separated outlets
Materials:
Body: nickel-plated brass, seals: PUR, pilot pin, flange screw and safety ring: zinc-plated steel
Temperature range:
-10°C to +85°C
Operating pressure:
0.5 - 12 bar
Media:
Oiled compressed air
Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
2 separated inlets and 2 separated outlets
Materials:
Body: nickel-plated brass, seals: PUR, pilot pin, flange screw and safety ring: zinc-plated steel
Temperature range:
-10°C to +85°C
Operating pressure:
0.5 - 12 bar
Media:
Oiled compressed air
Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
Properties
| Version | Compact |
| G | G 1/8" |
| Umax. [1/min] | 300 |
| DN [mm] | 4 |
| flow [l/min] | 440 |
| Temperature range [°C] | -10 to +85 |
| Operating pressure [bar] | 0,5 - 12 |

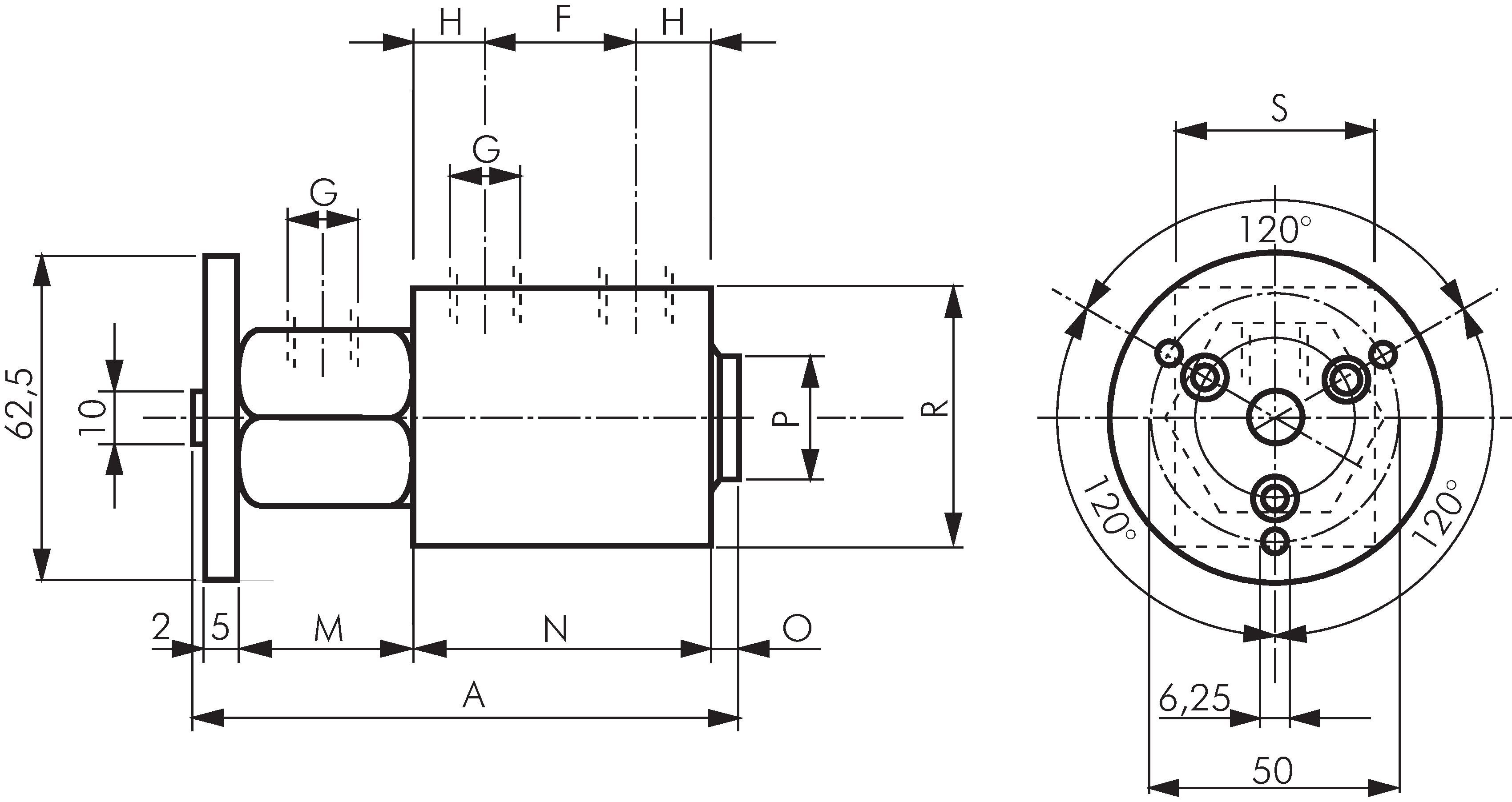

| A [mm] | 77,5 |
| H [mm] | 12,0 |
| M [mm] | 23 |
| N [mm] | 44 |
| O [mm] | 3,5 |
| P [mm] | 15 |
| R [mm] | 40 |
| S [mm] | 25 |
Further information on DDFC18-2
| Weight | 500 g / pcs |
| GTIN | 4050571246969 |
| Customs duty number | 74122000 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 263) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
