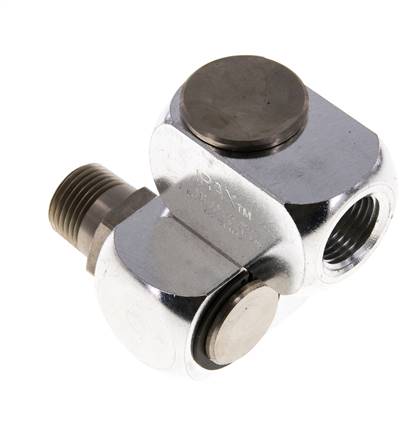

rotary joint 2-way R 1/2" (conical)(Female thread)-R 1/2"(male thread)
Item number:
DREHGELENK 12
Item description
Application:
For reduced rotary movements, e.g. connection to compressed air tools, especially for suspended compressed air tools.
Materials:
nickel-plated brass and plastic
Temperature range:
0 to +60 °C
Operating pressure:
0 to 15 bar
Media:
Compressed air
For reduced rotary movements, e.g. connection to compressed air tools, especially for suspended compressed air tools.
Materials:
nickel-plated brass and plastic
Temperature range:
0 to +60 °C
Operating pressure:
0 to 15 bar
Media:
Compressed air
Properties
| Thread internal | R 1/2" (taper) |
| Thread external | R 1/2" |
| Version | precision version |
| Version 360° rotatable | 2-way |
Further information on DREHGELENK12
| Weight | 360 g / pcs |
| GTIN | 4050571268442 |
| Customs duty number | 84671110 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 951) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
