Item description
Suitable:

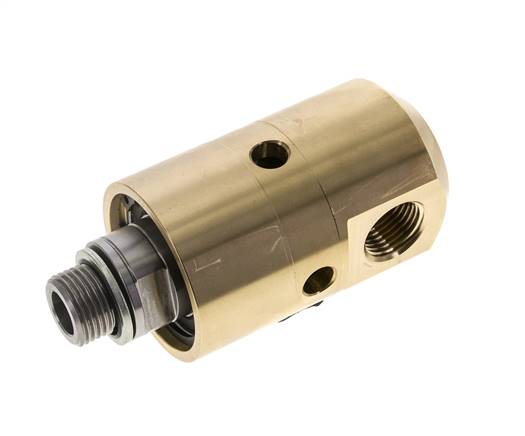

Rotary joint for simple supply line or drainage. These rotary joints are suitable for use of non-contaminated water. Alternatively, the units can be equipped with a special seal for non-contaminated or poorly filtered water.
Materials:
Body: brass, seal: carbon graphite / carbide
Temperature range:
0 to +95 °C
Operating pressure:
max. 50 bar (G 2": max 40 bar)
Media:
Water
Optional:
Version in stainless steel -ES, seal package for abrasive media or unclean water -AB
Warning:
Maximum pressure and speed values may not occur simultaneously. If in doubt, please ask us for confirmation. A liquid pressure that exceeds 8 bar is only allowed when using with cooling water and a maximum temperature of +50°C. Not suitable for reverse operation
Advantages:
•The springs are external to the media flow in order to minimise the loss of pressure and avoid turbulence.
Warning:
Take note of left and right-handed threads: Left-handed thread for feeding into clockwise rotating drums. Right-handed thread for feeding into counter-clockwise rotating drums.
Rotary joint for simple supply line or drainage. These rotary joints are suitable for use of non-contaminated water. Alternatively, the units can be equipped with a special seal for non-contaminated or poorly filtered water.
Materials:
Body: brass, seal: carbon graphite / carbide
Temperature range:
0 to +95 °C
Operating pressure:
max. 50 bar (G 2": max 40 bar)
Media:
Water
Optional:
Version in stainless steel -ES, seal package for abrasive media or unclean water -AB
Warning:
Maximum pressure and speed values may not occur simultaneously. If in doubt, please ask us for confirmation. A liquid pressure that exceeds 8 bar is only allowed when using with cooling water and a maximum temperature of +50°C. Not suitable for reverse operation
Advantages:
•The springs are external to the media flow in order to minimise the loss of pressure and avoid turbulence.
Warning:
Take note of left and right-handed threads: Left-handed thread for feeding into clockwise rotating drums. Right-handed thread for feeding into counter-clockwise rotating drums.
Properties
| Version | Standard |
| Thread G | G 1/2" |
| Thread G1 | G 1/2" |
| L [mm] | 82 |
| E [mm] | 120 |
| D [mm] | 13 |
| F [mm] | 54 |
| Umax. [1/min] | 3500 |
| Operating pressure [bar] | max. 50 |
Further information on DGHR12
| Weight | 1,3 kg / pcs |
| GTIN | 4050571249366 |
| Customs duty number | 84836020 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 267) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
