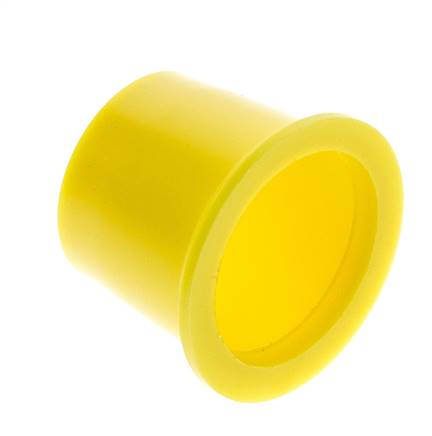

Item description
Suitable:
For protection of male threads, female threads or pipes against contamination and damage.
Materials:
LLD-PE, yellow (RAL 1016)
Temperature range:
-30 to +70 °C (temporarily max. +90 °C)
Advantages:
•for use as a plug and also suitable as a cap,
•the tapered shaft is suitable for bridging tolerances,
•easy removal owing to flanged design,
•can be recycled,
•no packing unit, can also be ordered singly
For protection of male threads, female threads or pipes against contamination and damage.
Materials:
LLD-PE, yellow (RAL 1016)
Temperature range:
-30 to +70 °C (temporarily max. +90 °C)
Advantages:
•for use as a plug and also suitable as a cap,
•the tapered shaft is suitable for bridging tolerances,
•easy removal owing to flanged design,
•can be recycled,
•no packing unit, can also be ordered singly
Properties
| Cap for imperial male threads | undefined |
| Cap for metric male threads (all pitches) | undefined |
| Plugs for imperial female threads | G 3/8" - Rp 3/8" |
| Plugs for metric female threads (standard thread) | M 18 |
| Plugs for metric female threads (fine thread) | M 17x1,5 |
| D [mm] | 16,1 |
| d [mm] | 14,5 |
Further information on CAPU12
| Weight | 0,8 g / pcs |
| GTIN | 4050571889296 |
| Customs duty number | 39269097 |
Documents
- Catalogue page Atlas 9 (Page 1016) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
