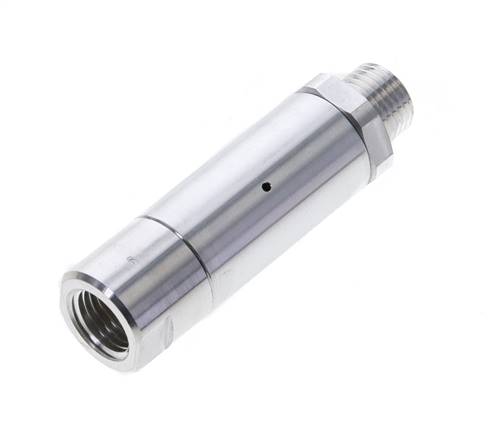

Self-venting inline pressure regulator, 6 bar, G 1/4" (AG)-G 1/4"(IG)
Item number:
TOOL DR 14-6 IA
Item description
Description:
The inline-pressure regulators are screwed directly into the tool to turn down the working pressure to a value that is optimal for the tool. The pressure regulators are distinguished by their low weight, high flow performance, and an automatic relieving system.
Materials:
Body: Aluminium, Gasket: NBR
Temperature range:
0 to +80 °C
Input pressure:
max. 25 bar
Media:
Compressed air
Advantages:
•A piece of compressed air equipment uncoupled from the compressed air line is immediately fully vented, unlike blow gun pressure reducing valves. This removes the risk of injury from accidental release of an uncoupled pneumatic nail gun, for example.
•The pressure which has been set cannot be altered
The inline-pressure regulators are screwed directly into the tool to turn down the working pressure to a value that is optimal for the tool. The pressure regulators are distinguished by their low weight, high flow performance, and an automatic relieving system.
Materials:
Body: Aluminium, Gasket: NBR
Temperature range:
0 to +80 °C
Input pressure:
max. 25 bar
Media:
Compressed air
Advantages:
•A piece of compressed air equipment uncoupled from the compressed air line is immediately fully vented, unlike blow gun pressure reducing valves. This removes the risk of injury from accidental release of an uncoupled pneumatic nail gun, for example.
•The pressure which has been set cannot be altered
Properties
| Version | Female thread / female thread |
| Input (female thread) | G 1/4" |
| Outlet | G 1/4" (male thread) |
| Outlet pressure (± 10%) [bar] | 6 |
| Flow* approx. [l/min] | 700 |
| L [mm] | 59 |
| D [mm] | 19 |
Further information on TOOLDR14-6IA
| Weight | 48 g / pcs |
| GTIN | 4050571700690 |
| Customs duty number | 84818099 |
Documents
- Catalogue page Atlas 9 (Page 950) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*at 12 bar input pressure and 0,5 bar pressure loss
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
