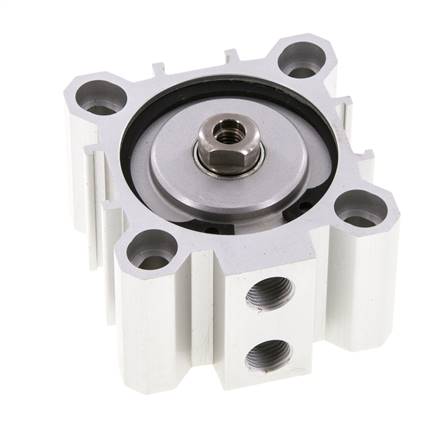

Short-stroke cylinders, single acting, piston 40 mm, stroke 5 mm
Item number:
NE 40/5
Item description
Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Cylinder switch type:
G
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Cylinder switch type:
G
Properties
| Piston diameter [mm] | 40 |
| Stroke [mm] | 5 |
| Version | without magnetic piston |
| C1 (piston rod thread) | M 6 |
| P (compressed air port) | G 1/8" |
| A [mm] | 58,0 |
| B [mm] | 55 |
| D [mm] | 12 |
| F [mm] | 5,8 |
| G [mm] | 9,0 |
| H [mm] | 30,5 |
| I [mm] | 42 |
| J [mm] | 11,0 |
| K [mm] | 42,0 |
| L [mm] | 29,5 |
| N [mm] | 40,0 |
| Q [mm] | 5,7 |
| S [mm] | 55,0 |
| T [mm] | 12 |
| V [mm] | 10 |
| W [mm] | 6,0 |
| X [mm] | 33 |
| Y [mm] | 17 |
| Z [mm] | 20 |
| AA [mm] | 12,5 |
| AB [mm] | 10 |
Further information on NE40/5
| Weight | 220 g / pcs |
| GTIN | 4050571525439 |
| Customs duty number | 84799070 |
| RoHS compliant | Yes |
