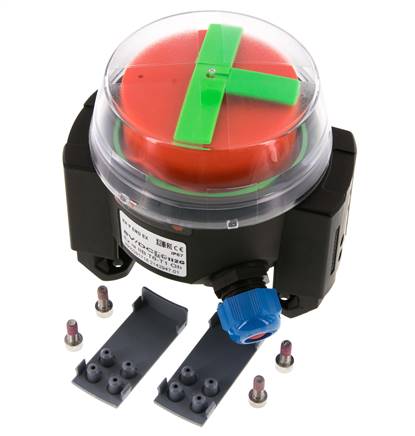

Item description
Materials:
Housing: PA, cover: Lexan 143 R, selector shaft: POM, seals: NBR, no metal parts
Temperature range:
-20 to +70 °C
Protection class:
IP 67
Connection dimensions:
Fits on drilling patterns 80 x 30 and 130 x 30 (not on actuator with size 1 and 2), variable shaft height between 20, 30, 40 and 50 mm
Advantages:
•to a large extent visual position indicator RED / GREEN,
•display on drilling pattern of the ball valve is easily adjustable (T,L)
Housing: PA, cover: Lexan 143 R, selector shaft: POM, seals: NBR, no metal parts
Temperature range:
-20 to +70 °C
Protection class:
IP 67
Connection dimensions:
Fits on drilling patterns 80 x 30 and 130 x 30 (not on actuator with size 1 and 2), variable shaft height between 20, 30, 40 and 50 mm
Advantages:
•to a large extent visual position indicator RED / GREEN,
•display on drilling pattern of the ball valve is easily adjustable (T,L)
Properties
| Switch type | NAMUR sensor |
| Switch capacity | 8 V (DC) / 1 mA (3 mA non-damped) |
| Switch function | 2x NO contact (PNP) |
| ATEX | II 2G Ex ia IIB T6 |
Further information on KHPENDEX
| Weight | 460 g / pcs |
| GTIN | 4050571427535 |
| Customs duty number | 84818081 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 544) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
