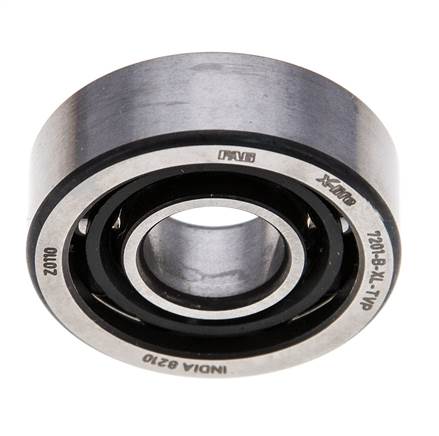

Single-row angular contact ball bearing, DIN 628, 12x32x10mm, open
Item number:
LA 7201 B
Item description
Description:
Angular contact ball bearings in a single row can be exposed to loads radially and axially. Axial forces act in the direction opposite to the land riding. Axial forces in most cases, are in the opposite direction and this is due to the angular contact ball bearing positioned in the opposite direction. Suitable for high speeds.
Tolerance:
DIN 620 Standard tolerance
Bearing play:
CN (normal)
Manufacturer:
We supply only bearings from the manufacturers SKF or FAG!
Note for replacement purchasing other brands:
Please let us know the manufacturer and the exact bearing name including the suffix.
Angular contact ball bearings in a single row can be exposed to loads radially and axially. Axial forces act in the direction opposite to the land riding. Axial forces in most cases, are in the opposite direction and this is due to the angular contact ball bearing positioned in the opposite direction. Suitable for high speeds.
Tolerance:
DIN 620 Standard tolerance
Bearing play:
CN (normal)
Manufacturer:
We supply only bearings from the manufacturers SKF or FAG!
Note for replacement purchasing other brands:
Please let us know the manufacturer and the exact bearing name including the suffix.
Properties
| Design | open |
| for shaft diameter d [mm] | 12 |
| D [mm] | 32 |
| B [mm] | 10 |
Further information on LA7201B
| Weight | 38 g / pcs |
| GTIN | 4050571028664 |
| Customs duty number | 84821090 |
| Manufacturer | SKF / FAG |
Documents
- Catalogue page Atlas 9 (Page 1108) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
