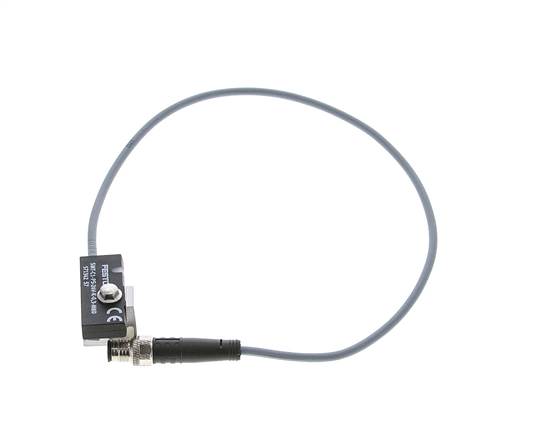

SMT-C1-PS-24V-K-0,3-M8D (571342) proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO036100
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | Block structure |
| Based on standard | EN 60947-5-2 |
| Permission | RCM mark |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Material information |
halogen free, Copper and PTFE-free |
| Measured parameter | Position |
| Measurement principle | Inductive magnet |
| ambient temperature [°C] | -20 to 70 |
| Control output | PNP |
| Switching element function | NO contact |
| Switch on time [ms] | <= 0,5 ms |
| Switch off time [ms] | <= 0,5 ms |
| Max. output current [mA] | 200 |
| Max. switching capacity DC [W] | 6 |
| Voltage drop [V] | < 1,8 V |
| Short circuit resistance | Cycling |
| Overload resistant | Available |
| Operating voltage range DC [V] | 10 to 30 |
| residual ripple | 10 % |
| Reverse polarity protection | for all electrical connections |
| Electrical connection |
M8x1, 3 pin, Cable with plug, Rotating thread |
| Connection outlet direction | along |
| Cable length [MTR] | 0,3 |
| Cable sleeve material | TPE-O |
| Wire ends | Wire end sleeve |
| Fastening type | clamped |
| Torque [Nm] | 1,2 |
| installation position | arbitrary |
| Product weight [g] | 24,4 |
| Housing material |
PP, TPE-O, TPE-U(PU), Aluminium wrought alloy, High-alloyed stainless steels, brass nickel-plated |
| Switching status indicator | LED yellow |
| Ambient temperature for moving cable placements [°C] | -20 to 70 |
| Protection category |
IP65, IP68, acc. to IEC 60529 |
| Food compatibility | See expanded material information |
{{ $t('shop.display.artikel.info') }} OT-FESTO036100
| {{ $t('shop.all.gewicht') }} | 24,4 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568101220 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Group data sheet: SMX-1 (english) festo/gruppendatenblaetter/smx-1_en.pdf
Documentation festo/datenblaetter/571342_en.pdf
Documentation festo/datenblaetter/571342_en.pdf
