Item description
Materials:
Body and slider: Aluminium, gaskets: NBR, pilot: Plastic
Operating pressure:
1.5 - 8 bar (5/3-directional: 2 - 8 bar)
Media:
oiled and unoiled filtered compressed air
Switching time:
<15 ms, max. 5 switching cycles / sec. (5/3-directional: max. 3 switching cycles / sec.)
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W / valve solenoid
Protection class:
IP 40
Service life:
min. 40 million switching cycles
Version:
with LED switching status display

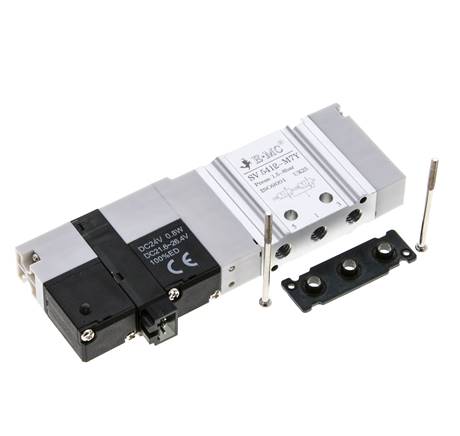

Scope of delivery:
Valve including screws and gasket
Note:
These valves can simply be screwed onto a valve position of an existing valve terminal to extend the functional range of a standard terminal or to replace a defective valve.
Body and slider: Aluminium, gaskets: NBR, pilot: Plastic
Operating pressure:
1.5 - 8 bar (5/3-directional: 2 - 8 bar)
Media:
oiled and unoiled filtered compressed air
Switching time:
<15 ms, max. 5 switching cycles / sec. (5/3-directional: max. 3 switching cycles / sec.)
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W / valve solenoid
Protection class:
IP 40
Service life:
min. 40 million switching cycles
Version:
with LED switching status display
Scope of delivery:
Valve including screws and gasket
Note:
These valves can simply be screwed onto a valve position of an existing valve terminal to extend the functional range of a standard terminal or to replace a defective valve.
Properties
| Version | Half socket valve |
| function | 2x 3/2-way (NC/NC) |
| Thread (2x) | M 7 |
| Code | Y |
| flow [l/min] | 330 |
Further information on SV5412-M7Y
| Weight | 80 g / pcs |
| GTIN | 4050571916855 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 772b_772c_772d_772e_772f) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
