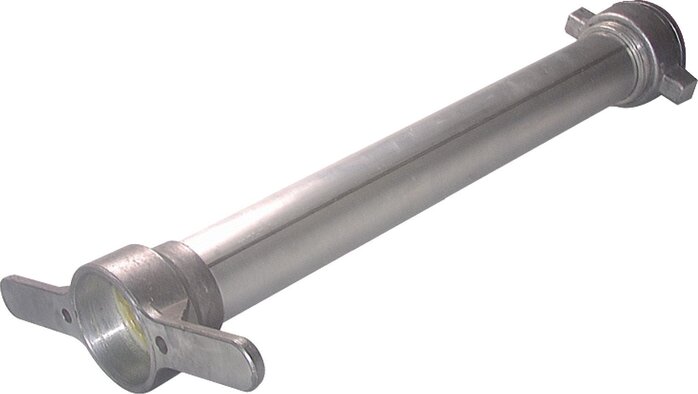

Stand pipe bottom part DN80

Item number:

STKR DN80

All items of this group
€289.50 incl. VAT
pcs
Item description
Materials:
 Seal: NBR (stainless steel: FKM)

Temperature range:
 -40°C to max. +110°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:
 max. 16 bar

Operating range:
 Industry, fire brigade, refinery, agriculture, construction industry, maritime, military and catastrophe protection

Dimensions for determining the size of Storz couplings DIN sizes
 lug distance 31 mm = Storz size 25-D, lug distance 66 mm = Storz size 52-C, lug distance 89 mm = Storz size 75-B, lug distance 133 mm = Storz size 110-A

Advantages:
 •simple assignment of hose end and connection,
•fast connection and disconnection through a 120°-rotation,
•All couplings with the same lug distance are compatible with one another. The rule that applies is: same lug distance, same nominal size,
•large range of applications through the use of application-specific hoses,
•Aluminium forged - no danger of breakage, such as exists with cast couplings of aluminium,
•Brass - body is made of DVGW/KTW-compliant alloy.

Scope of delivery:
 Bottom fitting, clamping ring, standpipe and handle piece
Properties
Ver­sion Stand pipe lower part
DN [mm] 80
Stand pipe spare seals STKR DN80 DI
Stan­dard DIN 14375
Further information on STKRDN80
Weight 2,7 kg / pcs
GTIN 4050571647186
Customs duty number 76169990
RoHS compliant Yes
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
