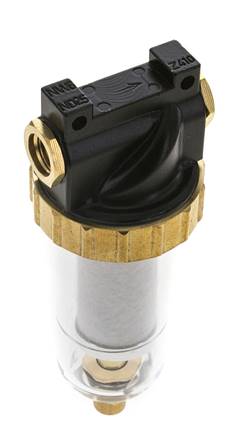

STANDARD Microfilter (sub-microfilter) G 1/4", Standard 1
Item number:
DFX 11
Item description
Application:
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: Zinc die-casting Z410, condensate container: Polycarbonate, filter insert: Borosilicate microfibre fleece
Temperature range:
0°C to max. +50°C (metal bowl up to max. +90°C)
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Input pressure:
1.5 - 16 bar (with metal bowl 0 - 25 bar)
Condensate draining:
Semi-automatic** (metal container: manual)
Media:
Compressed air, neutral gases
Optional:
Version with protection cage (not series 5)-S, version with metal tank with manual drain (0 - 25 bar) -M
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: Zinc die-casting Z410, condensate container: Polycarbonate, filter insert: Borosilicate microfibre fleece
Temperature range:
0°C to max. +50°C (metal bowl up to max. +90°C)
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Input pressure:
1.5 - 16 bar (with metal bowl 0 - 25 bar)
Condensate draining:
Semi-automatic** (metal container: manual)
Media:
Compressed air, neutral gases
Optional:
Version with protection cage (not series 5)-S, version with metal tank with manual drain (0 - 25 bar) -M
Properties
| Version | Microfilter (sub-microfilter) |
| Model series | Standard 1 |
| Thread | G 1/4" |
| Flow* [l/min] | 610 |
| Container design | Plastic container |
| Condensate drain | Semi-automatic |
| Mounting brackets | ZW DFX 10 |
| Replacement filter 0,01 µm | FILTER DFX 10 |
| input pressure [bar] | 1,5 - 16 |
| Temperature range [°C] | 0 to +50 |
| Max. condensate amount [cm³] | 12 |
| H [mm] | 154 |
| H1 [mm] | 135 |
| L [mm] | 57 (Ø 56) |
Further information on DFX11
| Weight | 420 g / pcs |
| GTIN | 4050571248437 |
| Customs duty number | 84213925 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 605) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*measured at P1 = 6 bar and 0.2 bar pressure drop
**as soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
