Item description
Function:

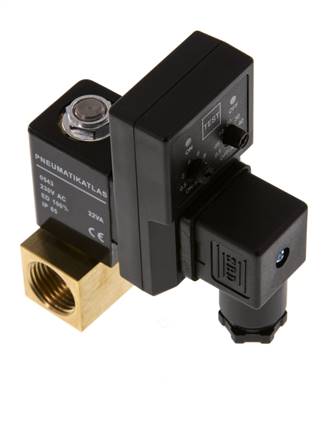

Solenoid valve with large opening and pre-programmed timer. The opening time can be continuously adjusted between 0.5 and 10 seconds, the cycle can also be continuously adjusted between every 30 seconds to 45 minutes.
Materials:
Valve: brass, seals: FKM, pulse generator: plastic
Temperature range:
+1 to +50 °C
Operating pressure:
0 to 16 bar
Power supply:
230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65
Solenoid valve with large opening and pre-programmed timer. The opening time can be continuously adjusted between 0.5 and 10 seconds, the cycle can also be continuously adjusted between every 30 seconds to 45 minutes.
Materials:
Valve: brass, seals: FKM, pulse generator: plastic
Temperature range:
+1 to +50 °C
Operating pressure:
0 to 16 bar
Power supply:
230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65
Properties
| Thread | G 1/2" |
| DN [mm] | 4 |
| Length* [mm] | 46 |
| Width [mm] | 88 |
| Height** [mm] | 95 |
| Pulse generator as spare part | KONDENS TIME |
| Spare solenoid coil | MAG P 230V |
Further information on KONDENS12
| Weight | 460 g / pcs |
| GTIN | 4050571445287 |
| Customs duty number | 84149000 |
Documents
- Catalogue page Atlas 9 (Page 633) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*From thread connector to thread connector, **Middle thread connector - top level timer
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
