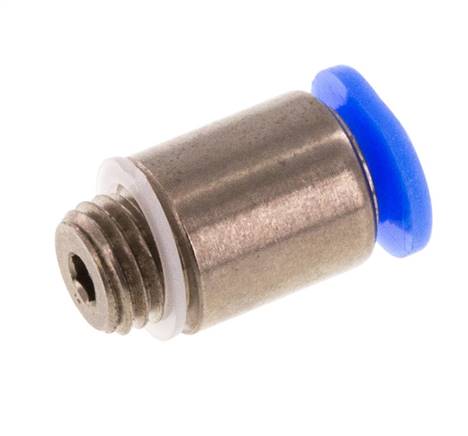

Straight push in fitting M 6x0,75-3mm, mini m. hexagon socket.
Item number:
IQSMP M63
Item description
Materials:
Body: nickel-plated brass (M 3: nickel-plated steel) / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated brass (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Extremely compact design,
•M 7 thread available,
•M 3, M 5, M 6, M 7 and G 1/8” threads are outfitted with a captive O-ring, which helps prevent the thread from tearing and seals it reliably even after multiple assemblies
Body: nickel-plated brass (M 3: nickel-plated steel) / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated brass (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Extremely compact design,
•M 7 thread available,
•M 3, M 5, M 6, M 7 and G 1/8” threads are outfitted with a captive O-ring, which helps prevent the thread from tearing and seals it reliably even after multiple assemblies
Properties
| G | M 6x0,75 |
| D [mm] | 3 |
| P [mm] | 8 |
Further information on IQSMPM63
| Weight | 3,3 g / pcs |
| GTIN | 4050571383244 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
| Manufacturer | Sang-A |
Documents
- Catalogue page Atlas 9 (Page 68) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
