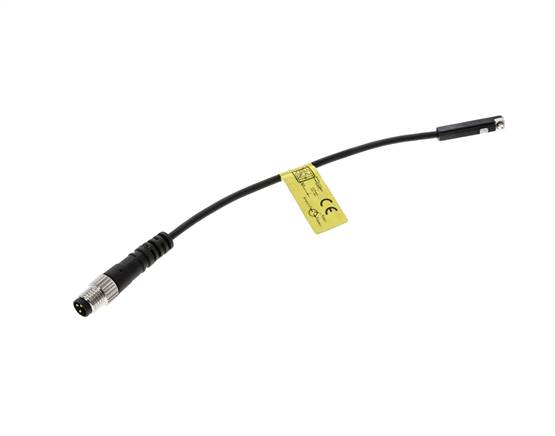

T-groove (3.5mm) cylinder switch, 2-wire solid-state sensor, red LED

ZSF 22-M8

Exemplary representation: Zylinderschalter - T-Nut Schematic symbol: M 8 plug (3-pin) Schematic symbol: 2-wire solid state sensor
38,98€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: plastic, screw: metal

Connecting line:
PVC cable

Protection class:
IP 67

Temperature range:
-10°C to +70°C

Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the T-groove of the cylinder and locking it using the threaded rod.

Suitable:
For cylinders / grippers with continuous T groove (3.5 mm)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version 2-wire solid-state sensor, red LED
Operating voltage 10 - 28 V (DC)
Switching NO contact
Max. switching current [mA] 50
Max. capacity 1,4 W
Connecting line 0.15 m, 2x 0.18 mm² with M 8 connector (3 pin)
ZSF22-M8
{{ $t('shop.all.gewicht') }} 15 g / pcs
{{ $t('shop.all.gtin') }} 4050571890988
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 887) atlas9_seiten/887.pdf
    Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
