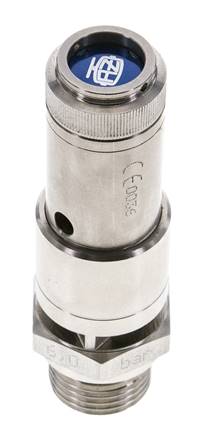

TÜV-safety valve G 1/2" (DN10), 1,00 bar, 1.4401
Item number:
SV 12 10-1 ES2A
Item description
Materials:
Body: brass, 1.4571 or 1.4401, seal: FKM
Temperature range:
-25 to +180 °C
Media:
Compressed air and other non-toxic non-inflammable gases, blown-off freely
Note:
These valves have been type approved and can only be supplied non-adjustable.
Optional:
NPT thread -NPT, fixed pressure between 0,2 and 50 bar, TÜV adjustment certificate
Body: brass, 1.4571 or 1.4401, seal: FKM
Temperature range:
-25 to +180 °C
Media:
Compressed air and other non-toxic non-inflammable gases, blown-off freely
Note:
These valves have been type approved and can only be supplied non-adjustable.
Optional:
NPT thread -NPT, fixed pressure between 0,2 and 50 bar, TÜV adjustment certificate
Properties
| Material | 1.4401 |
| Thread | G 1/2" |
| reaction pressure [bar] | 1,00 |
| Blow-off capacity* [m³/h] | 66,4 |
| H [mm] | 75 |
| h [mm] | 14 |
| SW [mm] | 27 |
| Component identification markings | TÜV.SV...-882.10.D/G.0.61 CE0036 1 bar |
Further information on SV1210-1ES2A
| Weight | 200 g / pcs |
| GTIN | 4050571651497 |
| Customs duty number | 84814010 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 639) (PDF)
- Documentation: Safety valves (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*at 0° C / 760 torr
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
deliverable again in ⌀ 4 weeks
