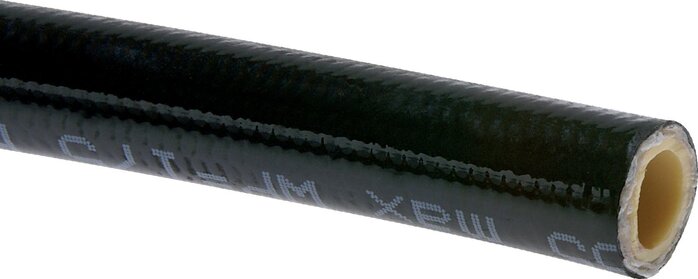

Thermoplastic hose DN 12

Item number:

1 KU 12

All items of this group
€36.70 incl. VAT
m
Item description
Materials:
 Inner core: Polyester, outer cover: Polyurethane (particularly abrasion-resistant, oil-, ozone-, grease- and weather-resistant), print substrate: 2-fold polyester mesh

Temperature range:
 -40 to +100 °C, applications with air, water and water emulsions max. +70°C

Media:
 Mineral oil, mineral oil with up to 40% aromatic content, polyglycol-based oil, rapeseed oil, bio-oil, water, water-glycol emulsions, water-oil emulsions

Operating range:
 Medium high pressure circuits, winches, forklifts

Advantages:
 • wear resistant,
•no longitudinal elongation
Properties
DN [mm] 12
Hose di­am­e­ter (inner) [mm] 12,7
Hose di­am­e­ter (outer) [mm] 20,3
Op­er­at­ing pres­sure [bar] 140
Burst pres­sure [bar] 560
Min. bend ra­dius [mm] 75
Size pa­ra­me­ter 8
Further information on 1KU12
Weight 220 g / m
GTIN 4050571185992
Customs duty number 39173100
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
