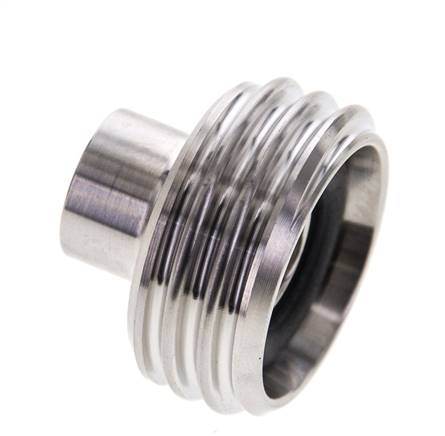

Threaded end (dairy thread) Rd 28 x 1/8"-13,0mm, 1.4404
Item number:
DNMA 3810 ESAS
Item description
Materials:
1.4404 / 1.4301, seal: EPDM (FDA 21 CFR 177.2600 and (EC) 1935/2004)
1.4404 / 1.4301, seal: EPDM (FDA 21 CFR 177.2600 and (EC) 1935/2004)
Properties
| Material | 1.4404 |
| Pipe diameter [mm] | 13,0 |
| RD | Rd 28 x 1/8" |
| DN [mm] | 10 |
| Version | DIN 11851 |
Further information on DNMA3810ESAS
| Weight | 34 g / pcs |
| GTIN | 4050571259679 |
| Customs duty number | 73072390 |
Documents
- Catalogue page Atlas 9 (Page 214) (PDF)
- Documentation: FDA statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
