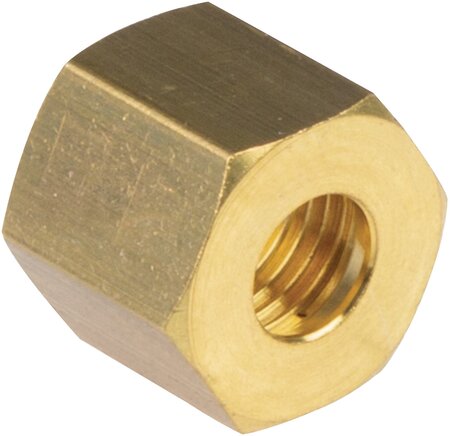

Union nut f. Compression ring screw connection 16 (M22x1,5)mm, brass
Item number:
KM 16 MS
Item description
Temperature range:
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
Properties
| Pipe diameter (outer) [mm] | 16 (M22x1,5) |
| Thread | M 22x1,5 |
| Operating pressure with hard copper tube [bar] | 76 |
| Temperature range [°C] | -60 to +300 |
Further information on KM16MS
| Weight | 41 g / pcs |
| GTIN | 4050571441340 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
