€1.00 incl. VAT
pcs

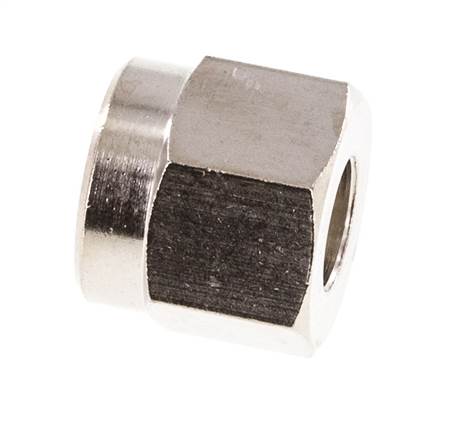

Item description
Materials:
Body: nickel-plated brass, cutting ring: brass

Temperature range:
-60°C up to max. +300°C (swivel screw connections: -20°C up to max. +80°C)

Recommended raw materials:
Copper, polyamide (with reinforced sleeve)

Note:
When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Properties
Model se­ries very light model se­ries
Pipe di­am­e­ter (outer) 6 LL (M10x1)
Thread M 10x1
Op­er­at­ing pres­sure with hard cop­per tube [bar] 100
Tem­per­a­ture range [°C] -60 to +300
Further information on M6LLMSV
Weight 5,5 g / pcs
GTIN 4050571479046
Customs duty number 74122000
RoHS compliant Yes
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Immediately available
