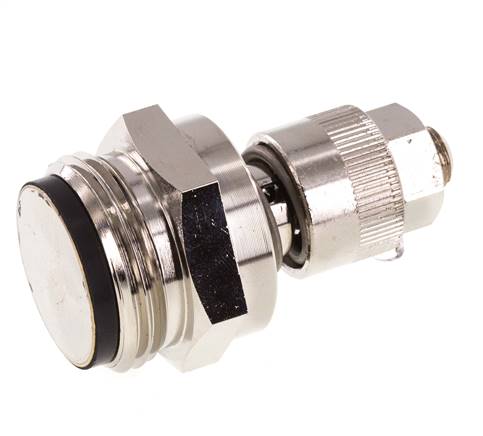

Item description
Application:
With a preset vacuum level this valve breathes the atmospheric air and prevents the vacuum level from exceeding beyond the desired vacuum value. It is used to adjust a vacuum system with the same operating vacuum. The setting is done using a fine thread of the valve and the mechanical opening due to the spring load.
Materials:
Body: Nickel-plated brass, Spring: stainless steel, seals: NBR
Temperature range:
-20 to +120 °C
With a preset vacuum level this valve breathes the atmospheric air and prevents the vacuum level from exceeding beyond the desired vacuum value. It is used to adjust a vacuum system with the same operating vacuum. The setting is done using a fine thread of the valve and the mechanical opening due to the spring load.
Materials:
Body: Nickel-plated brass, Spring: stainless steel, seals: NBR
Temperature range:
-20 to +120 °C
Properties
| Thread | G 1" |
| Suction performance [m³/h] | 100 |
| Suction performance [l/min] | 1667 |
| Pressure regulation range [bar] | -1 to -0,33 |
| L [mm] | 51 |
| SW [mm] | 35 |
Further information on R10VUB
| Weight | 210 g / pcs |
| GTIN | 4050571564650 |
| Customs duty number | 84141089 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 559) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
