Item description
Application:

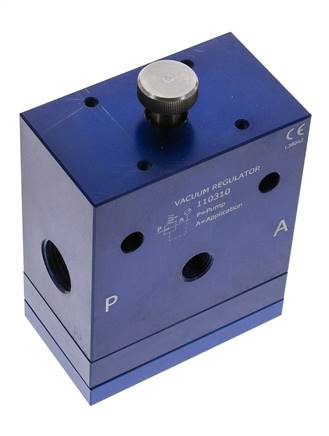

A vacuum without external leakage can be accurately regulated with these vacuum regulators. They are used in vacuum systems where individual consumer units need to be supplied with different levels of vacuum.
Adjustment:
The configuration is carried out using a knurled screw or via a pneumatic signal.
Materials:
Body: Anodized aluminium, seals: NBR
Temperature range:
-10 to +80 °C
Pressure gauge connection:
G 1/4" (controller G 1/4" and G 3/8": G 1/8")
Control connection (pneumatic setting):
G 1/8" (controller G 1 1/2": G 1/4")
A vacuum without external leakage can be accurately regulated with these vacuum regulators. They are used in vacuum systems where individual consumer units need to be supplied with different levels of vacuum.
Adjustment:
The configuration is carried out using a knurled screw or via a pneumatic signal.
Materials:
Body: Anodized aluminium, seals: NBR
Temperature range:
-10 to +80 °C
Pressure gauge connection:
G 1/4" (controller G 1/4" and G 3/8": G 1/8")
Control connection (pneumatic setting):
G 1/8" (controller G 1 1/2": G 1/4")
Properties
| Version | Standard controller |
| Setting | Manually |
| Thread | G 1/2" |
| Suction performance [m³/h] | 20 |
| Suction performance [l/min] | 333 |
| Pressure gauge connection | G 1/4" |
| Pressure regulation range [bar] | -1 to -0,2 |
Further information on R12VU
| Weight | 1,2 kg / pcs |
| GTIN | 4050571565985 |
| Customs duty number | 84141089 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 559) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
