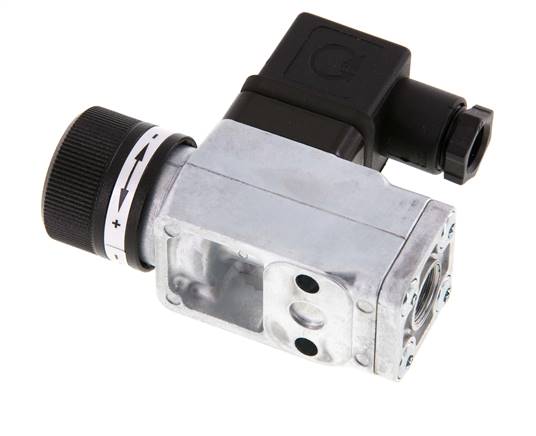

Item description
Materials:
Body: die-cast zinc / powder coated aluminium, seals and diaphragms**: NBR / PTFE

Temperature range:
-20 to +80 °C

Switch-back difference (hysteresis)
approx. 10 - 15 % of the set value (vacuum switch: 100 - 250 mbar)

Protection class:
IP 65 (with M 12-plug: IP 67)

Electrical connection:
Angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole) or M 12 plug (A-coded, 4-pole)

Switch type:
Changer

Switching capacity:
24 V DC / 3 A, 250 V AC / 6 A

Media:
Hydraulic oil, machine oil, heating oil, air, water

Optional:
Electrical connection through an M 12 plug (A-coded, 4-pole, IP67) -M12

Advantages:
•reasonably priced pressure switch,
•very comfortable and precise setting of the switch point using the hand wheel
Properties
Ver­sion vac­uum switch
Con­nec­tion type Thread
Set­ting range [bar] -0.85 to -0.15
Thread con­nec­tor G 1/4" (fe­male thread)
Safe at over­pres­sure up to [bar] 20
Elec­tri­cal con­nec­tion Right-​angle con­nec­tor, size 3, 4-pin (DIN 43650 / EN 175301-​803 A) (flat pin)
Pro­tec­tion cat­e­gory IP 65
Further information on DRSZ-1
Weight 320 g / pcs
GTIN 4050571273507
Customs duty number 90262080
Documents
*positionable, not available with option -M12, switching capacity: 24 V DC / 4 A, 250 V AC / 6 A, **Settings range >16 bar actuation via pistons


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
