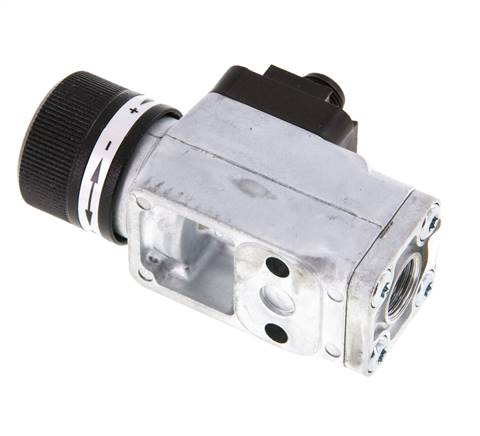

Item description
Materials:
Body: die-cast zinc / powder coated aluminium, seals and diaphragms**: NBR / PTFE
Temperature range:
-20 to +80 °C
Switch-back difference (hysteresis)
approx. 10 - 15 % of the set value (vacuum switch: 100 - 250 mbar)
Protection class:
IP 65 (with M 12-plug: IP 67)
Electrical connection:
Angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole) or M 12 plug (A-coded, 4-pole)
Switch type:
Changer
Switching capacity:
24 V DC / 3 A, 250 V AC / 6 A
Media:
Hydraulic oil, machine oil, heating oil, air, water
Optional:
Electrical connection through an M 12 plug (A-coded, 4-pole, IP67) -M12
Advantages:
•reasonably priced pressure switch,
•very comfortable and precise setting of the switch point using the hand wheel
Body: die-cast zinc / powder coated aluminium, seals and diaphragms**: NBR / PTFE
Temperature range:
-20 to +80 °C
Switch-back difference (hysteresis)
approx. 10 - 15 % of the set value (vacuum switch: 100 - 250 mbar)
Protection class:
IP 65 (with M 12-plug: IP 67)
Electrical connection:
Angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole) or M 12 plug (A-coded, 4-pole)
Switch type:
Changer
Switching capacity:
24 V DC / 3 A, 250 V AC / 6 A
Media:
Hydraulic oil, machine oil, heating oil, air, water
Optional:
Electrical connection through an M 12 plug (A-coded, 4-pole, IP67) -M12
Advantages:
•reasonably priced pressure switch,
•very comfortable and precise setting of the switch point using the hand wheel
Properties
| Version | vacuum switch |
| Connection type | Thread |
| Setting range [bar] | -0.85 to -0.15 |
| Thread connector | G 1/4" (female thread) |
| Safe at overpressure up to [bar] | 20 |
| Electrical connection | M12 connector, A-coded, 4-pole (DIN EN 61076-2-101) (plug) |
| Protection category | IP 67 |
Further information on DRSZ-1-M12
| Weight | 300 g / pcs |
| GTIN | 4050571273590 |
| Customs duty number | 90262080 |
Documents
- Catalogue page Atlas 9 (Page 686) (PDF)
- Documentation (PDF)
- Documentation: NSR-RoHS statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*positionable, not available with option -M12, switching capacity: 24 V DC / 4 A, 250 V AC / 6 A, **Settings range >16 bar actuation via pistons
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
