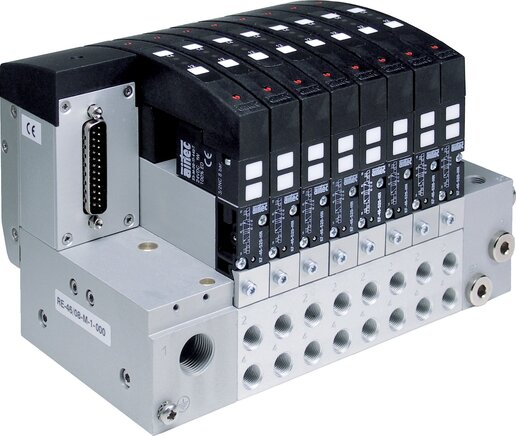

Item description
Materials:
Body: Aluminium / plastic, seals: NBR
Temperature range:
-10 to +50 °C
Operating pressure:
3 to 8 bar (0 - 8 bar for external air connection)
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
1,3 W / solenoid
Protection class:
IP 65
Version:
with LED and protection circuit
Function:
Every station has an LED status display and protective circuitry. The terminal can be fitted with KF 46 series valves if required. All the connections are accessible from the front side. Compressed air supply (connection 1) is provided in common for all valves on the front side. All the exhaust ducts (3 & 5) are vented by one G 3/8" connection each at the top and a second one at the front (closed with plugs on delivery).
Venting of the pilot solenoids (82 & 84) takes place via 2 G 1/8"-connections at the top. The additional G 1/8" connections are closed ex-works using plugs. A pressure separation within the terminal, as well as the supply of compressed air from both sides, is possible. For the supply of external air to the valves, the pressure range is 0 to 8 bar.
Advantages:
•compact construction,
•universally usable through modular system,
•LED status indication and protective circuitry,
•up to 20 stations (i.e. 40 solenoid coils) can be controlled over one multi-pole connecting cable,
•Protection class IP 65,
•Valves can be replaced individually,
•a valve with one or two solenoid coils can be mounted (also retrofitted) at a valve position as required.
valve assembly:
The valves must be ordered separately. They are arranged as per their function. Higher order numbers (e.g. KF 46 534 HN) are assembled on the multi-pin connection, while lower order numbers (e.g. KF 46 310/2 RHN) are assembled away from it. Blind plates are assembled behind the valves away from the connection. The valve terminal is assembled completely and tested before being delivered. The connection cable is not included in the scope of supply and must be ordered separately.
Body: Aluminium / plastic, seals: NBR
Temperature range:
-10 to +50 °C
Operating pressure:
3 to 8 bar (0 - 8 bar for external air connection)
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
1,3 W / solenoid
Protection class:
IP 65
Version:
with LED and protection circuit
Function:
Every station has an LED status display and protective circuitry. The terminal can be fitted with KF 46 series valves if required. All the connections are accessible from the front side. Compressed air supply (connection 1) is provided in common for all valves on the front side. All the exhaust ducts (3 & 5) are vented by one G 3/8" connection each at the top and a second one at the front (closed with plugs on delivery).
Venting of the pilot solenoids (82 & 84) takes place via 2 G 1/8"-connections at the top. The additional G 1/8" connections are closed ex-works using plugs. A pressure separation within the terminal, as well as the supply of compressed air from both sides, is possible. For the supply of external air to the valves, the pressure range is 0 to 8 bar.
Advantages:
•compact construction,
•universally usable through modular system,
•LED status indication and protective circuitry,
•up to 20 stations (i.e. 40 solenoid coils) can be controlled over one multi-pole connecting cable,
•Protection class IP 65,
•Valves can be replaced individually,
•a valve with one or two solenoid coils can be mounted (also retrofitted) at a valve position as required.
valve assembly:
The valves must be ordered separately. They are arranged as per their function. Higher order numbers (e.g. KF 46 534 HN) are assembled on the multi-pin connection, while lower order numbers (e.g. KF 46 310/2 RHN) are assembled away from it. Blind plates are assembled behind the valves away from the connection. The valve terminal is assembled completely and tested before being delivered. The connection cable is not included in the scope of supply and must be ordered separately.

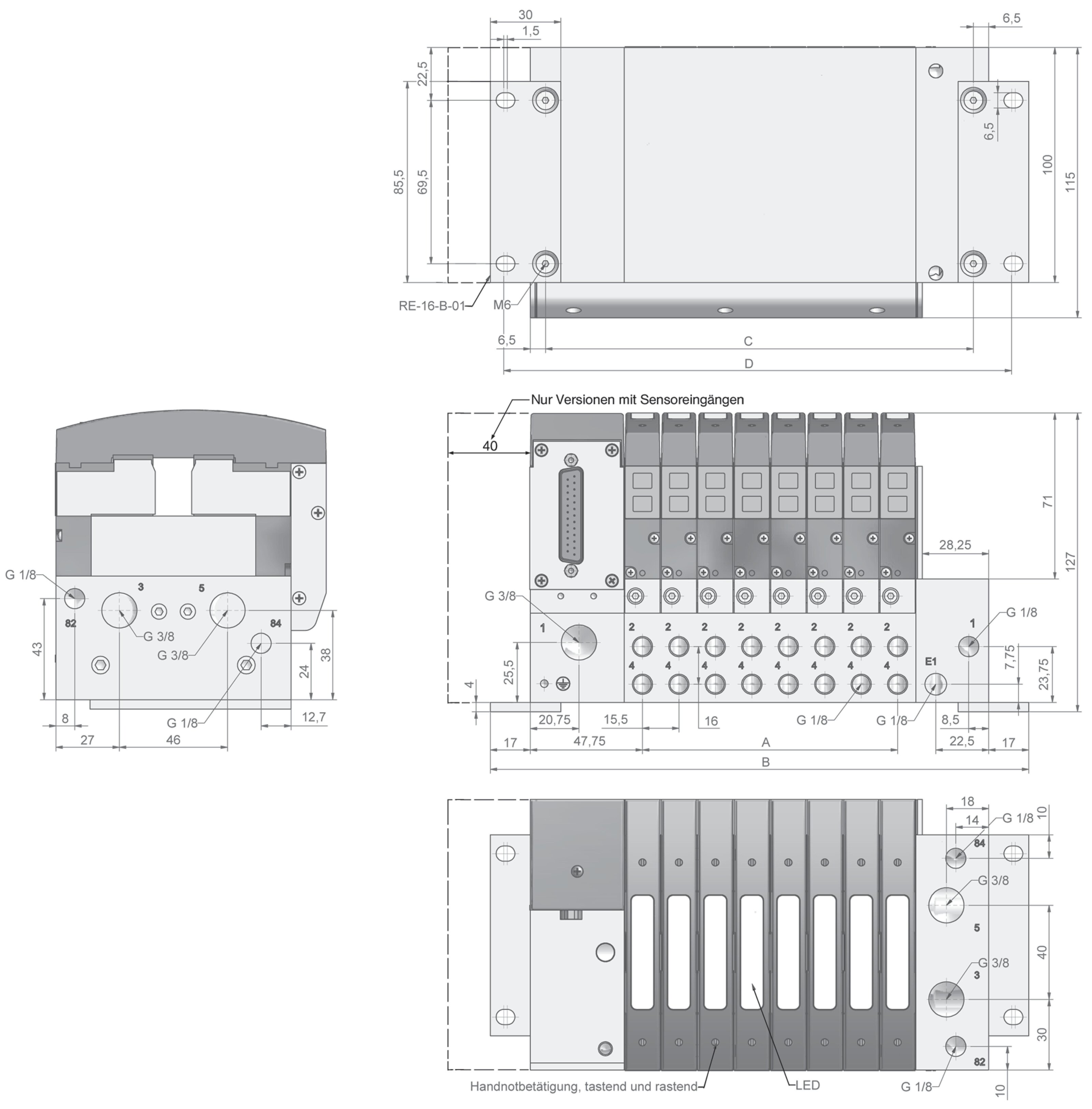

Properties
| Controller | multi-pin |
| Number of stations [PCE] | 8 |
| A [mm] | 108,5 |
| B [mm] | 229 |
| C [mm] | 182 |
| D [mm] | 216 |
Further information on RE46-8-M1
| Weight | 2,8 kg / pcs |
| GTIN | 4050571573119 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 774_775) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
