Item description
Properties:

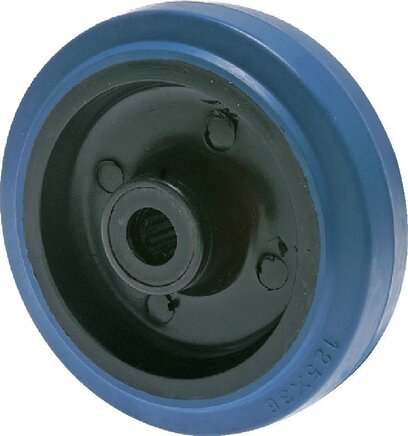

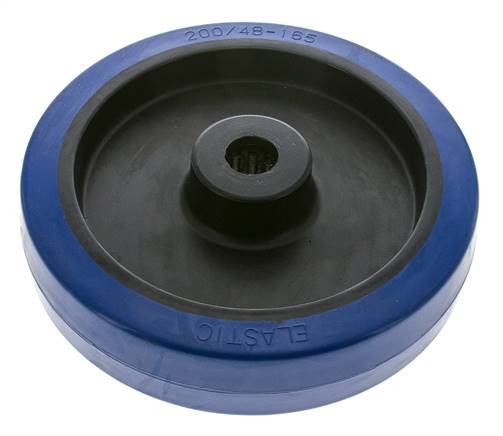

Elastic-solid rubber tyres, blue, no tracks, on a plastic wheel body, lower roll resistance.
Bearing type:
Roller cage bearing
Elastic-solid rubber tyres, blue, no tracks, on a plastic wheel body, lower roll resistance.
Bearing type:
Roller cage bearing
Properties
| Wheel diameter (±3%) [mm] | 200 |
| Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)] | 350 |
| Wheel width [mm] | 50 |
| Wheel borehole [mm] | 20 |
| Hub length [mm] | 60 |
Further information on RO200VG
| Weight | 1,1 kg / pcs |
| GTIN | 4050571597412 |
| Customs duty number | 87169090 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 1117) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
