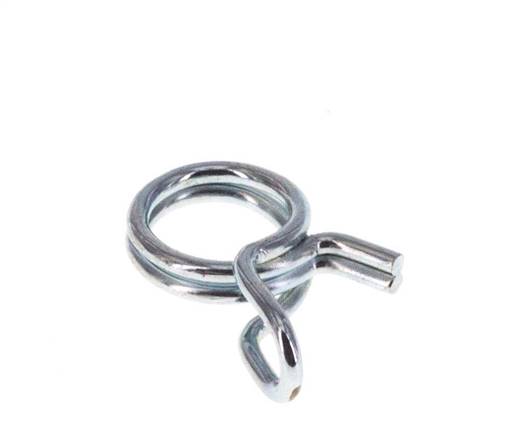

wire retention clamp, 7,3 mm, clamping range 7 to 7,5 mm
Item number:
DNSS 7,3
Item description
Materials:
zinc plated spring steel
Suitable:
Made of steel wire, the self re-tensioning hose clip can handle pressures up to a max. 4 bar. To open the clamp, simply use pliers to press the clamp's legs together. The clamp tightens itself by spring force, and so holds hoses safely and reliably, even in a widely fluctuating range of temperatures, and materials with a high thermal expansion coefficient. Prior to finalising a connection, we recommend a thorough inspection of the clamp strength.
zinc plated spring steel
Suitable:
Made of steel wire, the self re-tensioning hose clip can handle pressures up to a max. 4 bar. To open the clamp, simply use pliers to press the clamp's legs together. The clamp tightens itself by spring force, and so holds hoses safely and reliably, even in a widely fluctuating range of temperatures, and materials with a high thermal expansion coefficient. Prior to finalising a connection, we recommend a thorough inspection of the clamp strength.
Properties
| Ideal clamping diameter [mm] | 7,3 |
| Diameter clamping range [mm] | 7 - 7,5 |
| Width [mm] | 5,2 |
Further information on DNSS7,3
| Weight | 0,5 g / pcs |
| GTIN | 4050571260965 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 416) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
