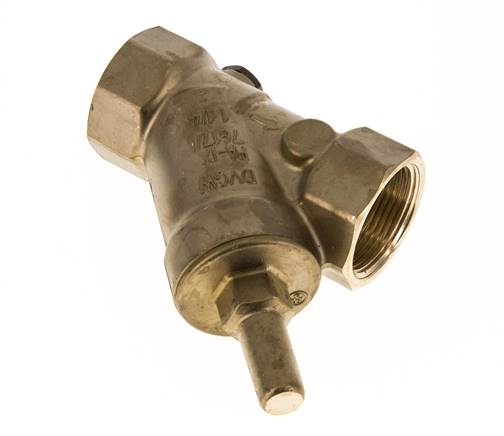

Item description
Materials:
Body: brass, seat seal: NBR (type DVGW & Rp 2-1/2" - Rp 3": EPDM)
Temperature range:
-10 to +90 °C
Opening pressure:
0,1 to 0,2 bar
Optional:
FKM seal (to 2", -20°C to max. +200°C) -V
Advantages:
•Length according to DIN 3202-M8, with test screw,
•Type DVGW additionally DIN-DVGW certified for drinking water pipes
Body: brass, seat seal: NBR (type DVGW & Rp 2-1/2" - Rp 3": EPDM)
Temperature range:
-10 to +90 °C
Opening pressure:
0,1 to 0,2 bar
Optional:
FKM seal (to 2", -20°C to max. +200°C) -V
Advantages:
•Length according to DIN 3202-M8, with test screw,
•Type DVGW additionally DIN-DVGW certified for drinking water pipes
Properties
| Version | Standard |
| Seals | NBR |
| G | Rp 1-1/4" |
| L [mm] | 110 |
| H [mm] | 86 |
| PN [bar] | 16 |
Further information on RUCK114SS
| Weight | 1.000 g / pcs |
| GTIN | 4050571606831 |
| Customs duty number | 84813099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 806) (PDF)
- Documentation: Check valves (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*tested PN 16, not suitable for mineral oils!, **without test screw, no DIN length, ***no DIN length
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
