Data sheet
Short-stroke cylinders, double acting, piston 80 mm, stroke 10 mm
Item number:
AVD 80/10

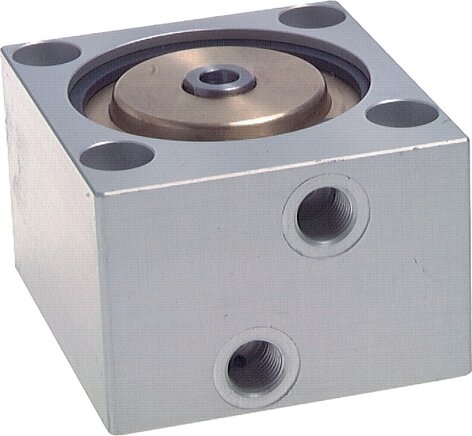

Example illustration
Item description
Materials:
housing: anodized aluminium, piston rod: CK 45 hard chromium plated, end cover up to Ø 63: Brass, Ø 80: anodized aluminium, seals: NBR / Polyurethane
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Properties
| Piston diameter [mm] | 80 |
| Stroke [mm] | 10 |
Further information:
| Weight | 1,5 kg / pcs |
| GTIN | 4050571221577 |
| Customs duty number | 84123100 |

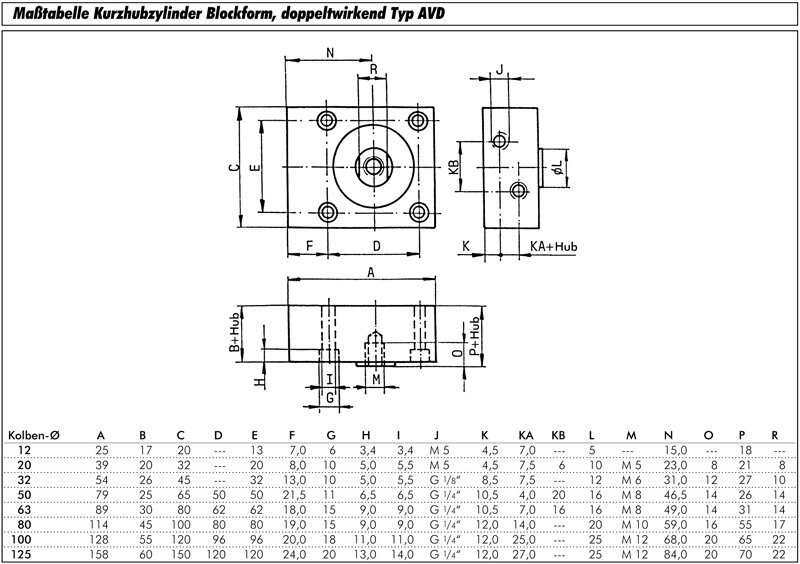

Drawing:
Drawing
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number AVD 80/10.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 15.05.2025
