Data sheet

SMT-C1-PS-24V-K-5,0-OE (571339) Proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO021182

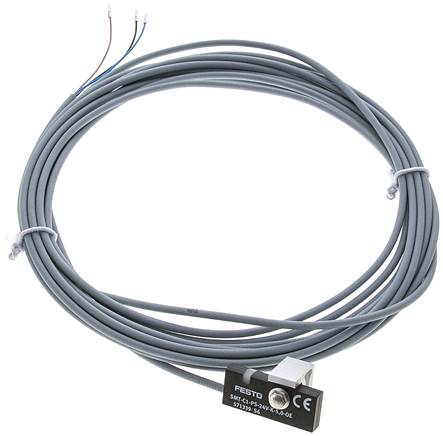

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Design Block structure
Based on standard EN 60947-5-2
Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directive
Material information halogen free,
Copper and PTFE-free
UKCA marking (see declaration of conformity) Position
Material information Inductive magnet
ambient temperature [°C] -20 to 70
Control output PNP
Switching element function NO contact
Switch on time [ms] <= 0,5 ms
Switch off time [ms] <= 0,5 ms
Max. output current [mA] 200
Max. switching capacity DC [W] 6
Voltage drop [V] < 1,8 V
Short circuit resistance Cycling
Overload resistant Available
Operating voltage range DC [V] 10 to 30
residual ripple 10 %
Reverse polarity protection for all electrical connections
Electrical connection 3-wire,
cable
Connection outlet direction along
Cable length [MTR] 5,0
Cable sleeve material TPE-O
Wire ends Wire end sleeve
Fastening type clamped
Torque [Nm] 1,2
installation position arbitrary
Housing material PP,
TPE-O,
TPE-U(PU),
Aluminium wrought alloy,
High-alloyed stainless steels,
brass nickel-plated
Switching status indicator LED yellow
Ambient temperature for moving cable placements [°C] -20 to 70
Protection category IP65,
IP68,
acc. to IEC 60529
Food compatibility See expanded material information
Further information:
{{ $t('shop.all.gewicht') }} 70 g / pcs
{{ $t('shop.all.gtin') }} 4052568101190
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.all.hersteller') }} Festo
Figure
