Data sheet
VABF-S4-2-F1B1-C (540176) Throttle plate
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO023475

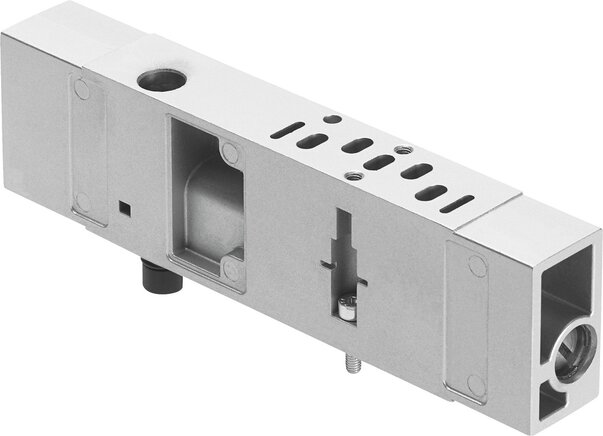

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Build.width [mm] | 18 |
| Based on standard | ISO 15407-2 |
| installation position | arbitrary |
| Operating pressure [bar] | -0.9 to 10 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Information about operating and control medium | 0 - No corrosion stressing |
| Protection category |
IP65, NEMA 4 |
| LABS (PWIS) conformity [°C] | -5 to 50 |
| Housing material | Aluminium die casting |
| CE certificate (see declaration of conformity) | to EU low voltage directive |
| control medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Fastening type height linking |
on single connection plate, on linking plate |
Further information:
| {{ $t('shop.all.gewicht') }} | 210 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568090296 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number OT-FESTO023475.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 20.12.2025
