Data sheet
Compressor coupling closure, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
VKO

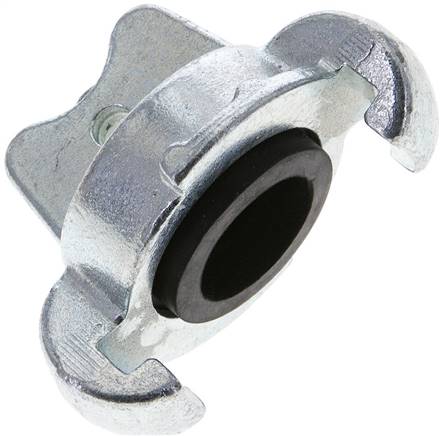

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Temperature range:
Steel or malleable cast iron: -40°C to +95°C, stainless steel: -30°C to +200°C
Note:
Brass seals are preferably used right at the compressor to prevent sticking of the seals from high temperature. The seal is held reliably in the coupling through free blow-off through the screw. Always use a coupling with a rubber seal as the counter-coupling.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Seals | NBR |
| Usage | all compressor couplings |
| Replacement seals | SKG GU |
| Operating pressure [bar] | 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 155 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571161231 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VKO.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
