Data sheet

HD closing plug hexagon socket. M 10x1, 1.4571
{{ $t('shop.all.artikelnummer') }}:
VSTI 10X1 ES

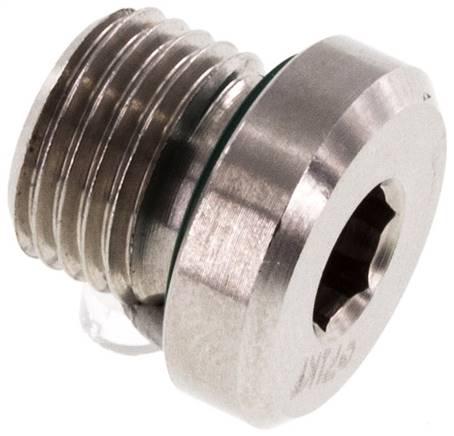

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: NBR (Type 1.4571: FKM)
Optional:
FKM seal -V
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4571
Seals FKM
Thread M 10x1
PN* [bar] 400
Temperature range [°C] -20 to +200
Further information:
{{ $t('shop.all.gewicht') }} 7,3 g / pcs
{{ $t('shop.all.gtin') }} 4050571727826
{{ $t('shop.display.artikel.zollwarennummer') }} 73071990
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Closing plug with elastomer seal, cylindrical thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VSTI 10X1 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 20.12.2025
