Data sheet
Cylinder switches, fully electronic sensor (reverse polarity protection / short circuit proof), yell
{{ $t('shop.all.artikelnummer') }}:
ZSC 33

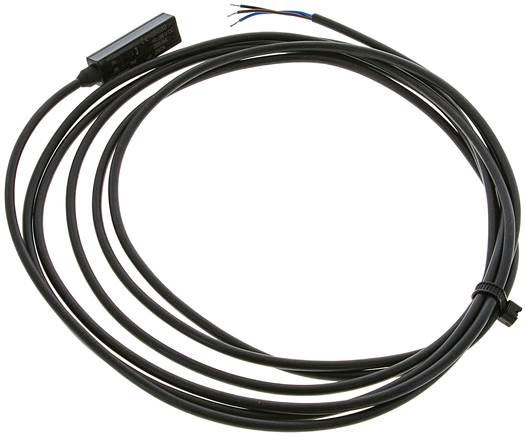

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
PEI
Connecting line:
PVC cable
Protection class:
IP 67
Temperature range:
-25 to +75 °C
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. The mounting is done by type C1 tension bands or type C2 fixing clamps, which must be ordered as accessories.
Suitable:
For round cylinders & tension anchor cylinders
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | fully electronic sensor (reverse polarity protection / short circuit proof), yellow LED |
| Operating voltage | 10 - 30 V (DC) |
| Switching | NO contact (PNP) |
| Max. switching current [mA] | 200 |
| Max. capacity | 6 W |
| Connecting line | 3 m, 3x 0.25 mm² |
Further information:
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571816698 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Sensor dimensions
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number ZSC 33.
