Data sheet

DGSL-8-10-P1A (543932) Mini slide
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO025553

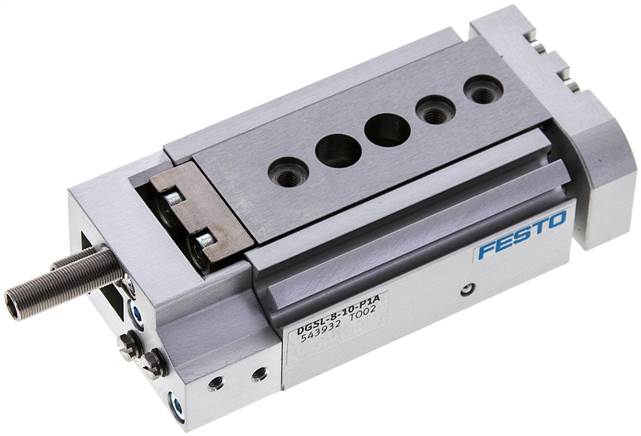

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 10
Alignable end position range / Length front [mm] 19,5
Alignable end position range / Length rear [mm] 18,5
Piston diameter 10 mm
Operating mode, drive unit Joch
Dampening P1: Elastic silencer rings / plates double-sided With fixed limit stop
installation position arbitrary
Guide Ball cage guide
Construction set up Joch,
Kolben,
Kolbenstange,
Schlitten
Position detection For proximity switch
Operating pressure [bar] 1.5 to 8
Max. speed [m/s] 0,8
Repeatability ±0.01 mm
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 0 - No corrosion stressing
Information about operating and control medium [°C] 0 to 60
Impact energy at the end positions [J] 0,030
LABS (PWIS) conformity [mm] 3,1
Max. force Fy [N] 657
Max. force Fz [N] 657
Max. torque Mx [Nm] 7
Max. torque My [Nm] 5,5
Max. torque Mz [Nm] 5,5
Theoretical force at 6 bar, Return flow [N] 40
Theoretical force at 6 bar, flow [N] 47
Moving mass [g] 101
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke See product drawing
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke With throughway bores
Pneumatic connection M3
Material information Copper and PTFE-free,
RoHs compliant
Cover material Aluminium wrought alloy
Seals material HNBR
Housing material Aluminium wrought alloy
Material information High-alloyed stainless steels
Further information:
{{ $t('shop.all.gewicht') }} 280 g / pcs
{{ $t('shop.all.gtin') }} 4052568182779
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number OT-FESTO025553.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 20.12.2025
